Luxura® Clad
Cladding Plank System
Luxura® Clad combines the natural appearance of timber with A1-rated, non-combustible mineral composite construction.
Its natural surface variation captures the character of real timber, while the embossed woodgrain finish and through-colour construction help make scratches less noticeable.
Suitable for horizontal or vertical installation, it pairs with MyDek’s rail and helping hand support system and matches Luxura decking for coordinated façades and balconies.
Backed by a 30-year warranty.
KEY FEATURES
Luxura® Clad simply delivers unrivalled benefits:
- A1 fire rating
- Provides a complete 3-in-1 solution (cladding, decking and substructure)
- Installation efficiency with swivel clips and 60% less fixings and flat backing making it easier to install the cavity barrier
- Can be installed in horizontal or vertical format
- Through colour board – scratch resistant, meaning the ends can be exposed without the need for painting
- Consistent finish for decking & cladding – natural timber-look, embossed woodgrain finish
- 60-year design life and 30-year warranty
COLOURS
Luxura® Clad is available in Natural Aged Oak or Natural Hickory and finished with our special Luxura woodgrain pattern.
Painted finishes are available on request.
Please note: due to the natural content of this product, there may be a slight colour variation between batches.
INSTALLATION

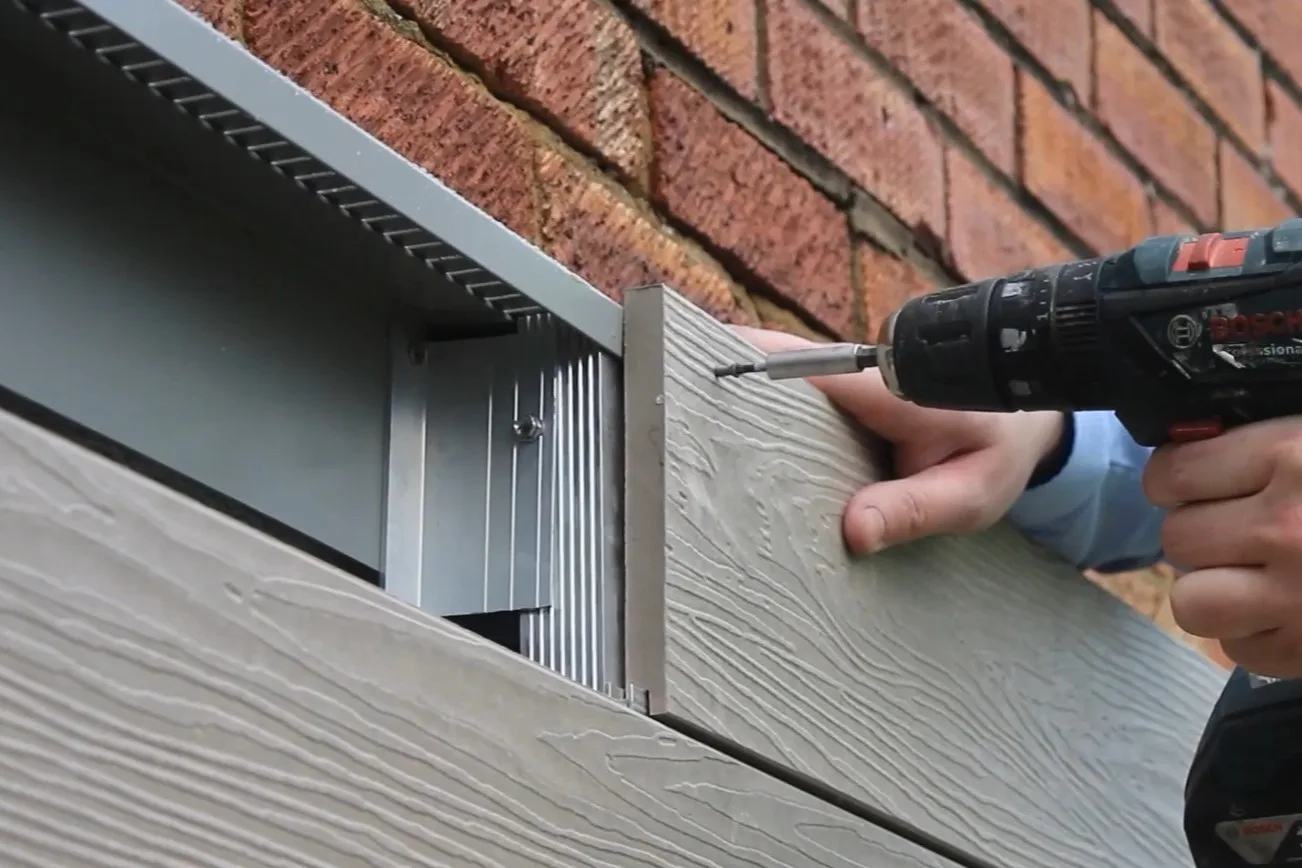

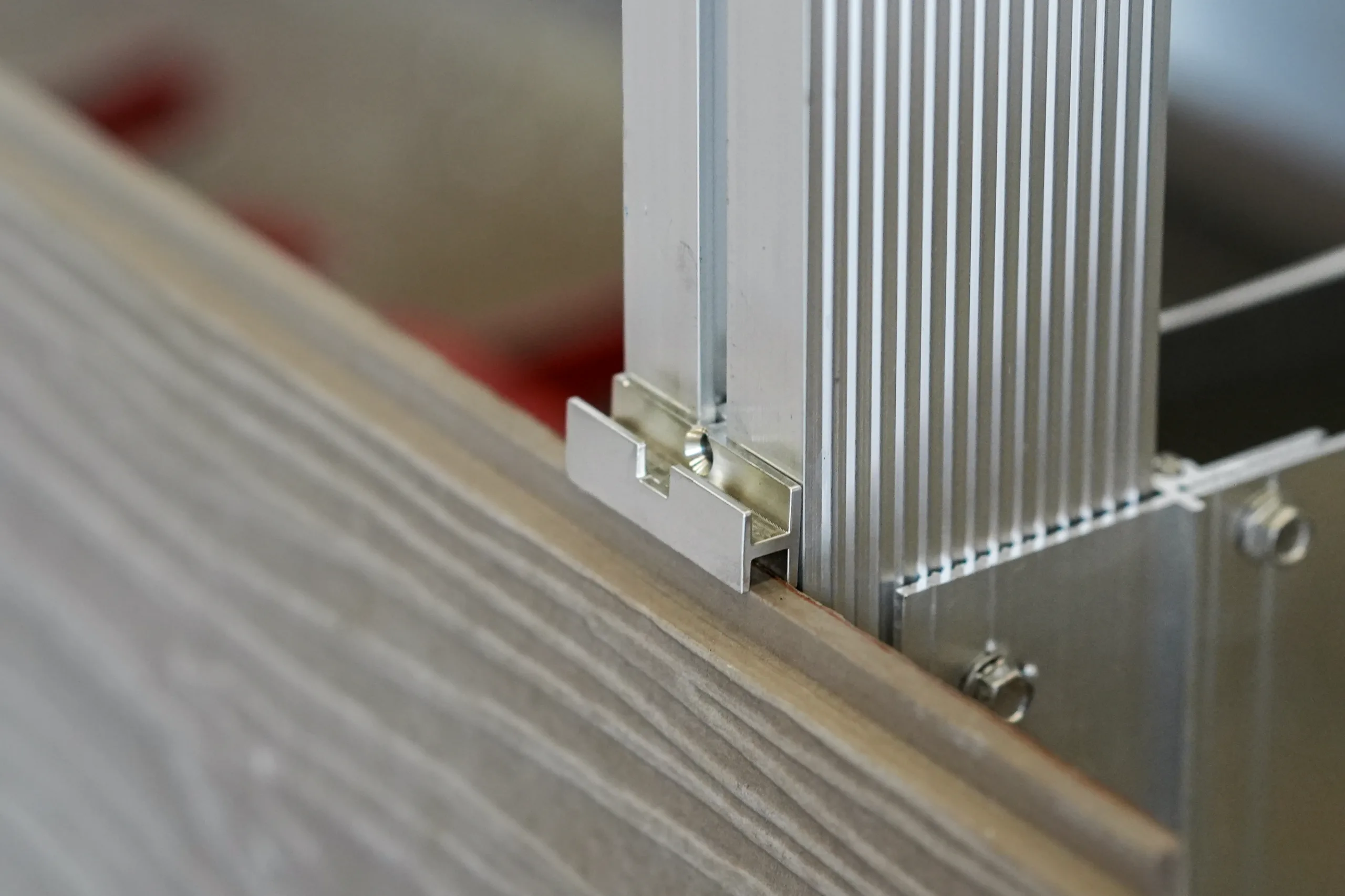

Clipped onto Helping Hands and fixed using supplied self-drilling screws. Rail clips to adjustable Helping Hand. Contact MyDek Technical Support for support for required anchoring to the substrate.
Fire Classification: A1 (Fully non-combustible)
Material Colour: Through-coloured mineral composite – colour runs through the board rather than relying on a surface coating. Ends can be left exposed.
Scratch resistance: Excellent – scratches are far less noticeable due to the consistent colour throughout the board.

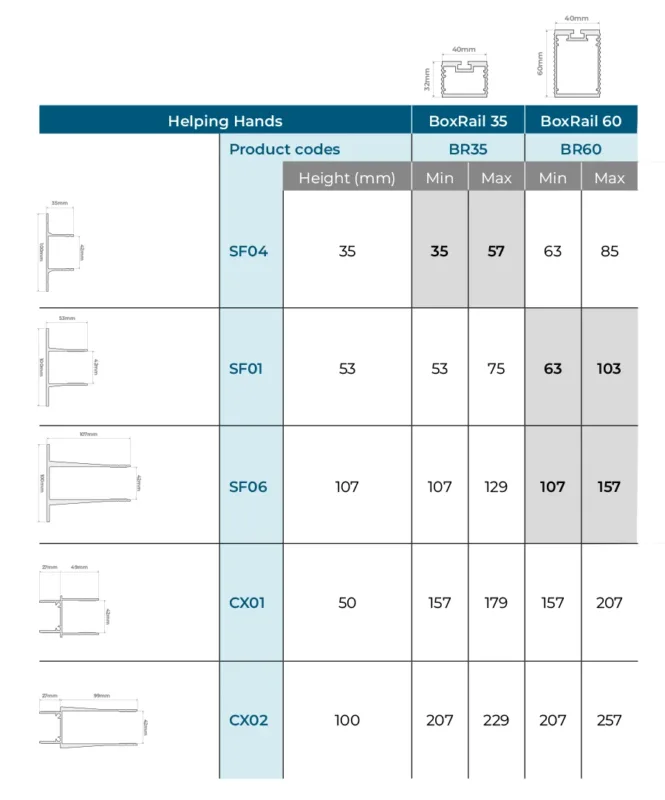

Substructure requirements: Up to 60% fewer fixings due to the MyDek BoxRail and cleat system. Reduced connections help minimise thermal bridging. Purpose-designed swivel clip system enables faster installation.
Design / aesthetics: Matches Luxura decking to provide a coordinated facade and balcony design with a consistent timber appearance across both decking and cladding.
Warranty: 30 years
Fire Classification: A2-s1,d0 (Limited combustibility)
Material Colour: Factory-applied painted finish, needs to be repainted at ends.
Scratch resistance: Surface scratches more visible due to painted finish.
Substructure requirements: Substructure not supplied as a system with the board, normally from separate manufacturer.Conventional support rail systems with higher fixing quantities.
Design / aesthetics: No matching decking solution
Warranty: Typically 15-year warranty
TECH SPECS

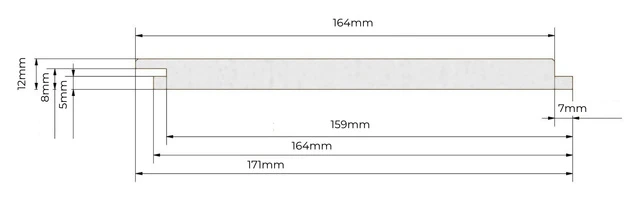

| Board width | 171mm, 166mm coverage |
| Board thickness | 12mm |
| Board length | 2.44m |
| Weight | 8.34kgs per board |

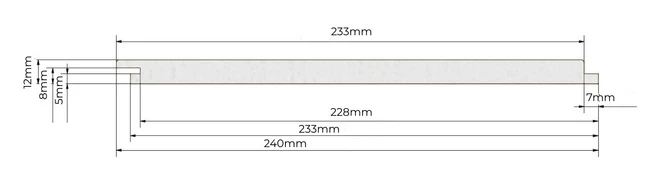

| Board width | 240mm, 235mm coverage |
| Board thickness | 12mm |
| Board length | 2.44m |
| Weight | 11.8kgs per board |
| Board | Calcium silicate and mineral fibre composite |
| Expansion allowance | <1mm per linear metre |
| Finish | Solid, through-colour, textured woodgrain finish |
| Standard Natural Hickory | CL17.2440.HICK |
| Standard Natural Aged Oak | CL17.2440.AOAK | Non-Standard Natural Hickory | CL23.2440.HICK |
| Non-Standard Natural Aged Oak | CL23.2440.AOAK |
| Natural Hickory |
Natural Aged Oak |
All storage, logistics and installation must be conducted under an appropriate risk assessment and method statement.
- Always wear gloves when handling boards.
- Boards must be stored flat, supported along their entire length such as on a suitable pallet.
- Store in a dry, ventilated area
- Do not store boards in damp or exterior conditions, this can cause mould build-up between the boards.
- Do not overload pallets, failure of a pallet can cause the stack to topple. Instead, stack up to 2 metres high in total and within the capacity of the pallet.
- Do not drag boards off the stack, instead, avoid scratches by lifting boards using a suitable technique, and where possible using suitable lifting aids.
- Use lifting aids and Personal Protective Equipment as set out in the risk assessment and method statement.
Standard
Non-Standard
| Flexural Strength | 20MPa |
| WIND LOADING | MAXIMUM SPAN(MM) | MAXIMUM CANTILEVER |
|
0.5 kN/sqm |
750mm |
250mm |
|
1.0 kN/sqm |
600mm |
170mm |
|
1.5 kN/sqm |
470mm |
130mm |
|
2.0 kN/sqm |
360mm |
110mm |
| CC01.0001.9005 | Starter Clip |
| IC.0100.0000 | Intermediate Clip |
| CS30.0100.9005 | Countersunk Tek Screws 4.2x30mm |
| BC01.3000.9005 | Ventilated base closer |
| RC01.1200.9005 | Reveal trims |
