J-Clip™ Tile-Lock
Restraint System
The J-ClipTM is an innovative mechanism to enable the restraint of porcelain tiles against wind uplift. The unique design of the clip means it can be inserted anywhere along the rail and does not need to be inserted from one end. The neat additional spacer creates the gap between the tiles in the other direction therefore allowing equal spacing around each tile. J-ClipTM is fully compatible with the MyDek BoxRail System - allowing use of MyDek decking boards and porcelain tiles to be utilised on the same support framework.
Combining our J-clip with Pyro +
Echo Paving mitigates wind uplift
KEY FEATURES
- More than 6x increased wind uplift resistance compared to unrestrained 20mm porcelain tiles
- Lightweight
- Non-Combustible
- Won’t rust or rot
- 30 year warranty
- 60 year design life
INSTALLATION

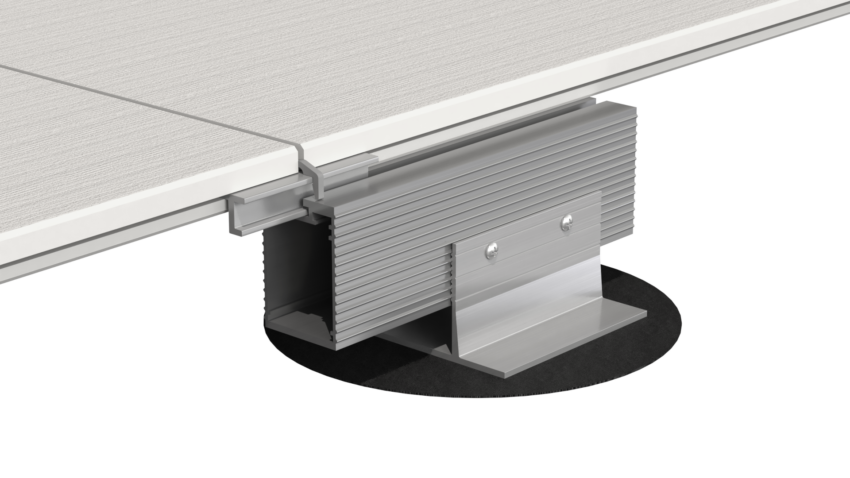

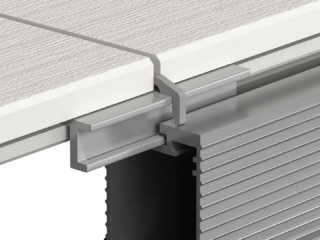

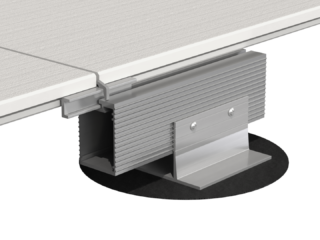

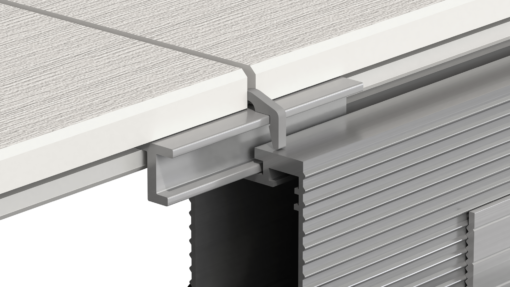

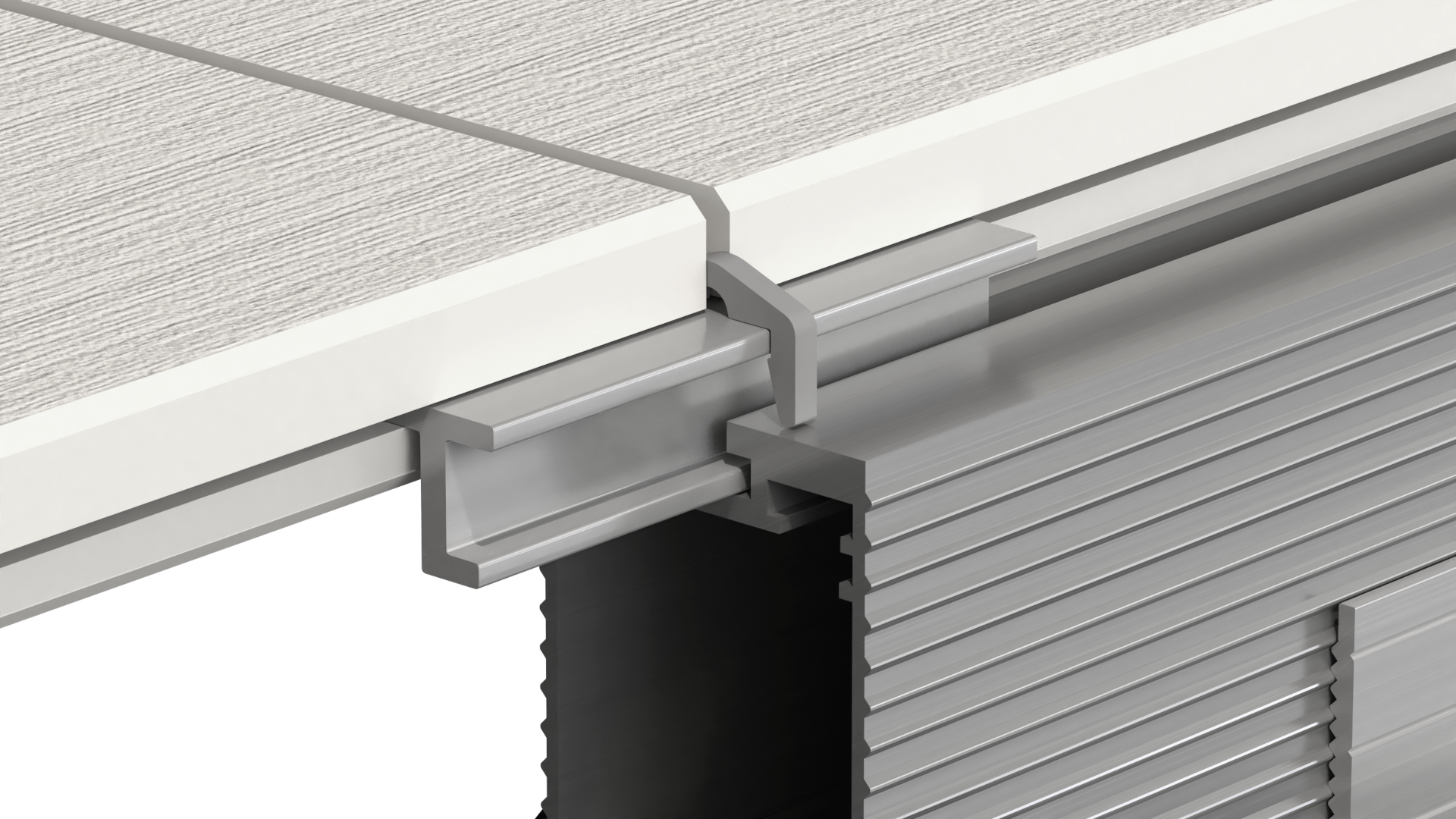

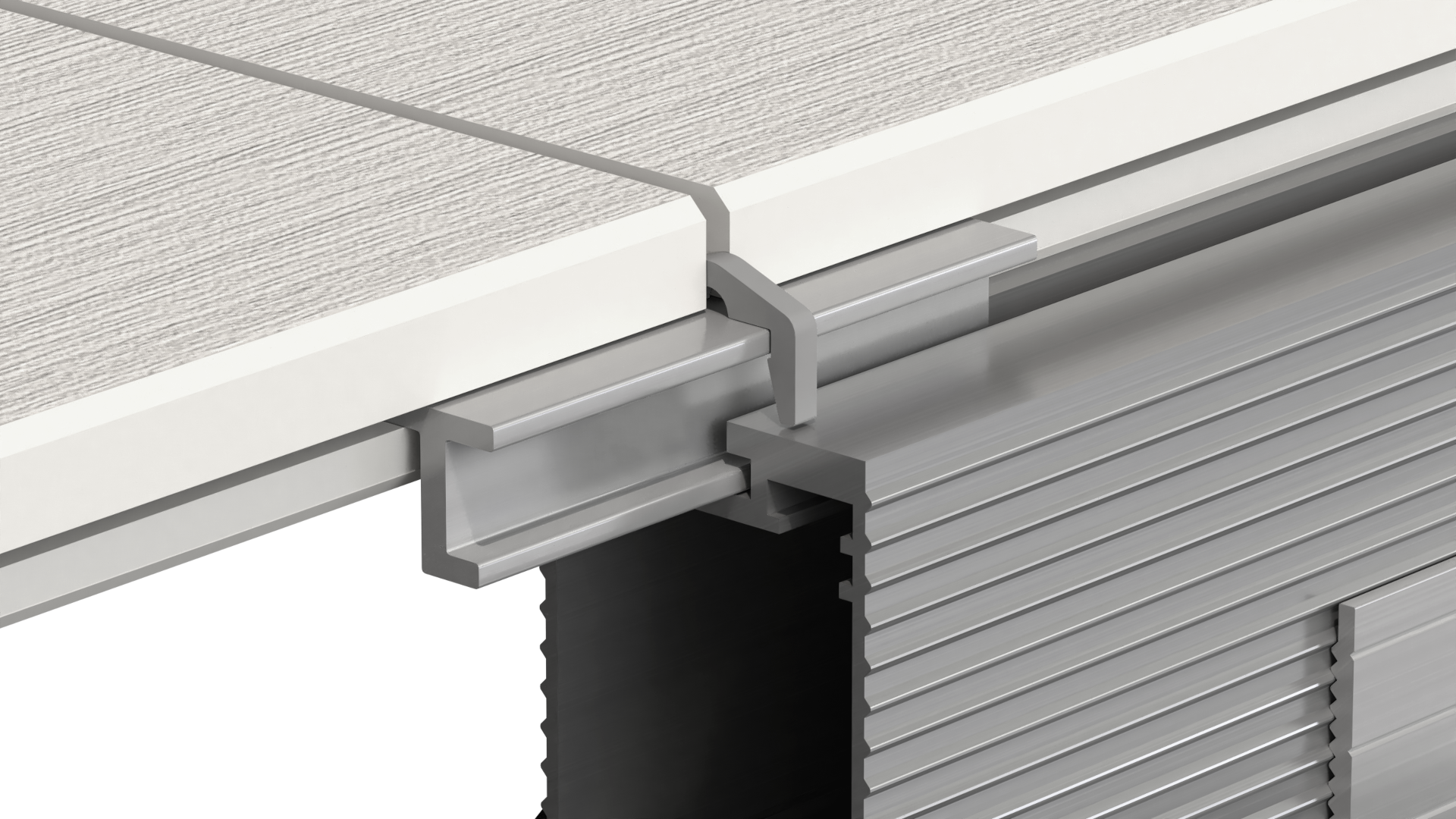

Assemble the Box Rail system in the normal way. Adhere the Neoprene gasket strips to the top of the bearers leaving a gap where the J-Clip will be inserted. Simply slot the J-Clip into the channel within the BoxRail bearer and slide to engage with the grooved porcelain tile edge. Once in position clip the tile spacer to provide spacing laterally between tiles if required.
Applications

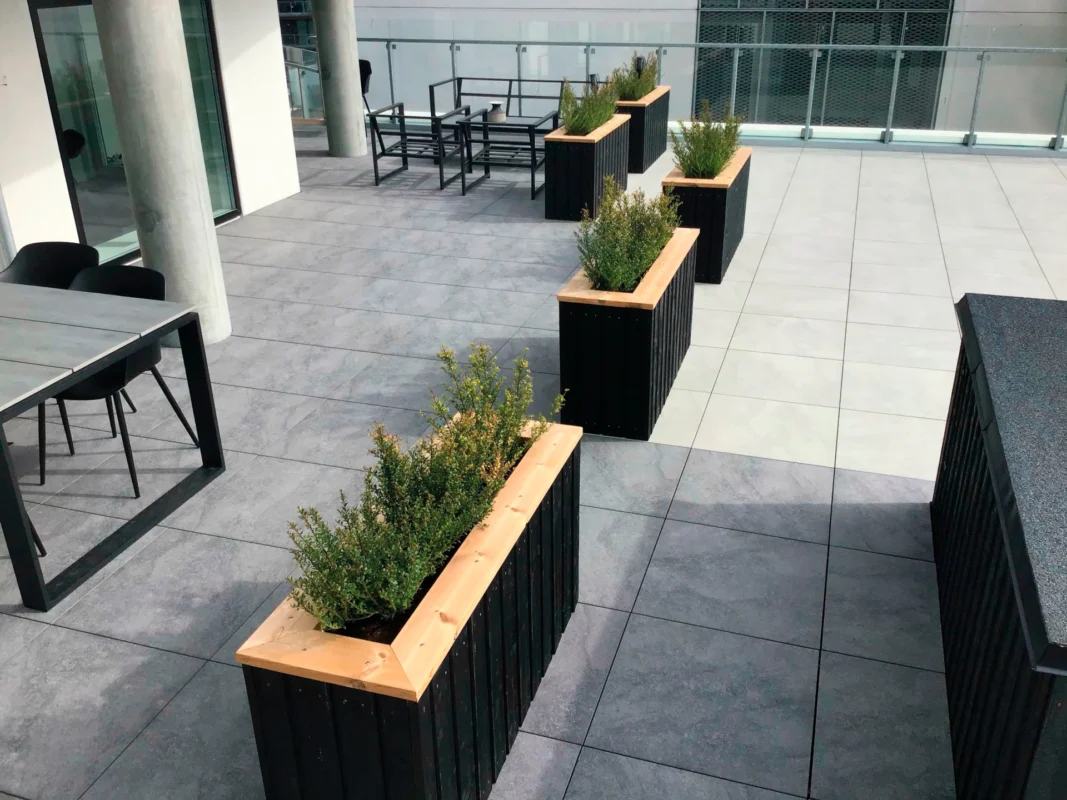

For use on Inset balconies, roof terraces and podium decks.
TECH SPECS
| Body | Aluminium grade 6063-T6 |
| For use on Inset balconies, roof terraces and podium decks |
|
Overall Size |
75mm (L) x 15mm (W) x 18.5mm (H) |
|
|
Joint space width |
3mm |
|
|

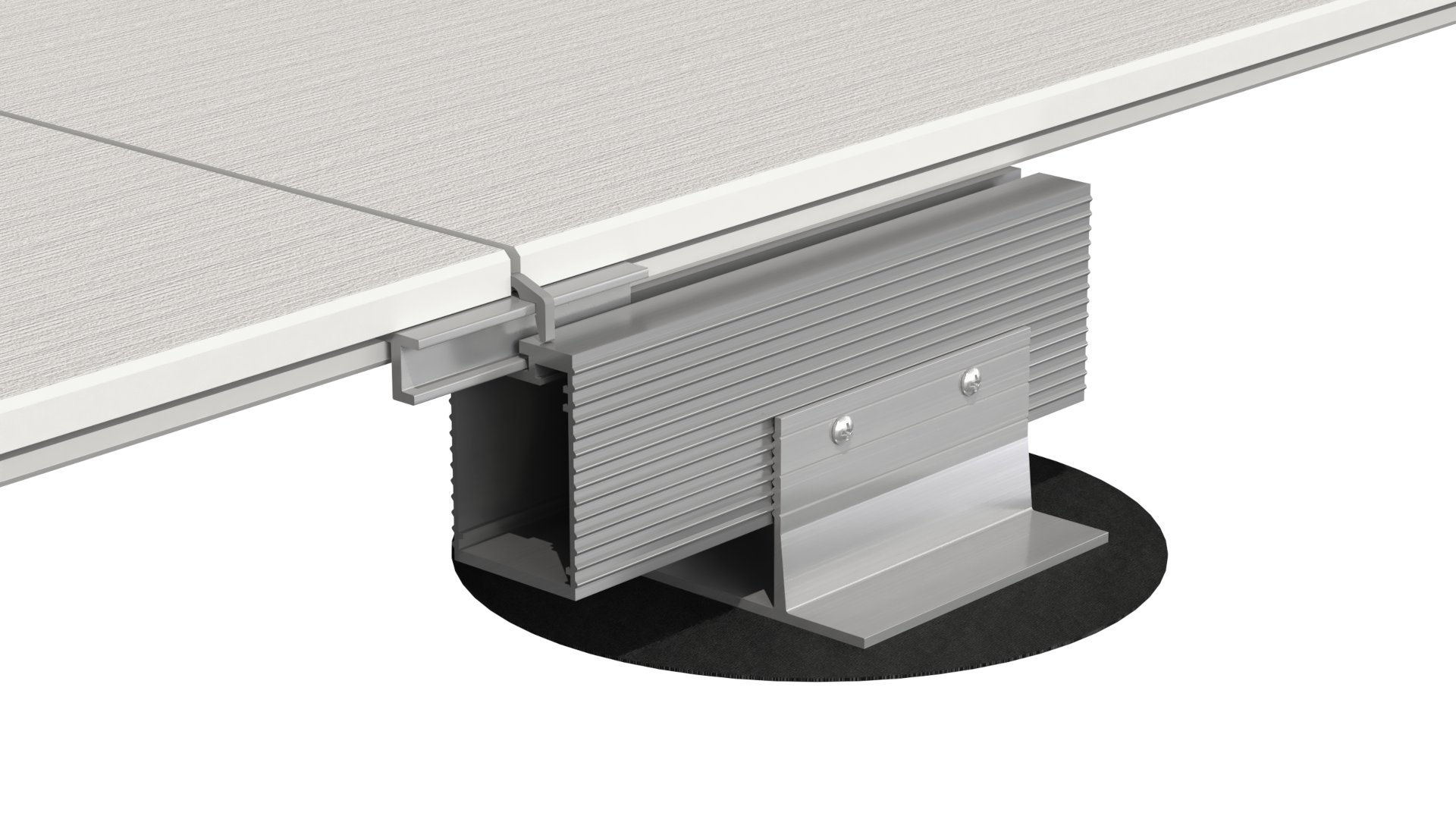

TC01 J-ClipTM |

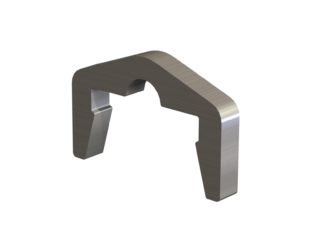

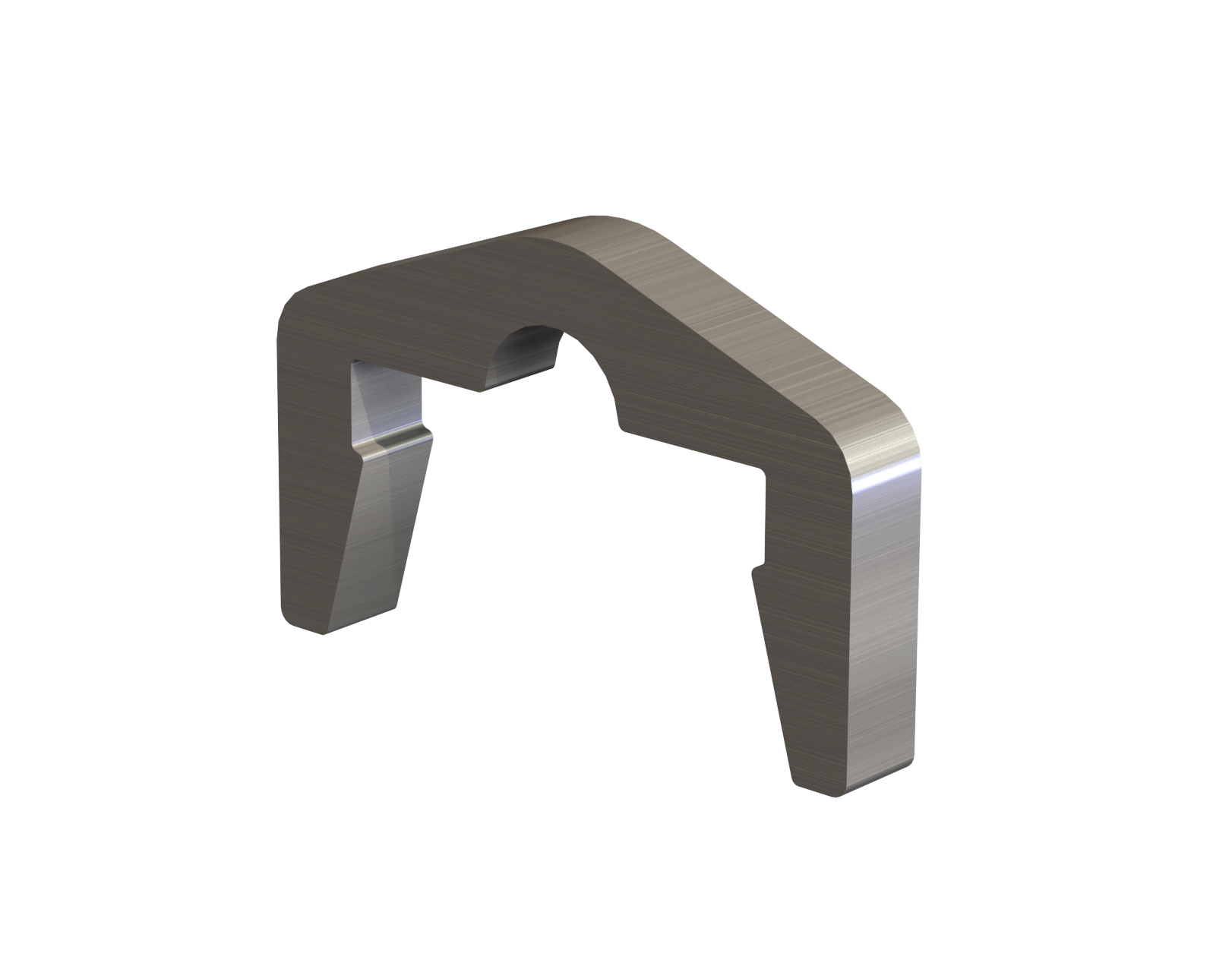

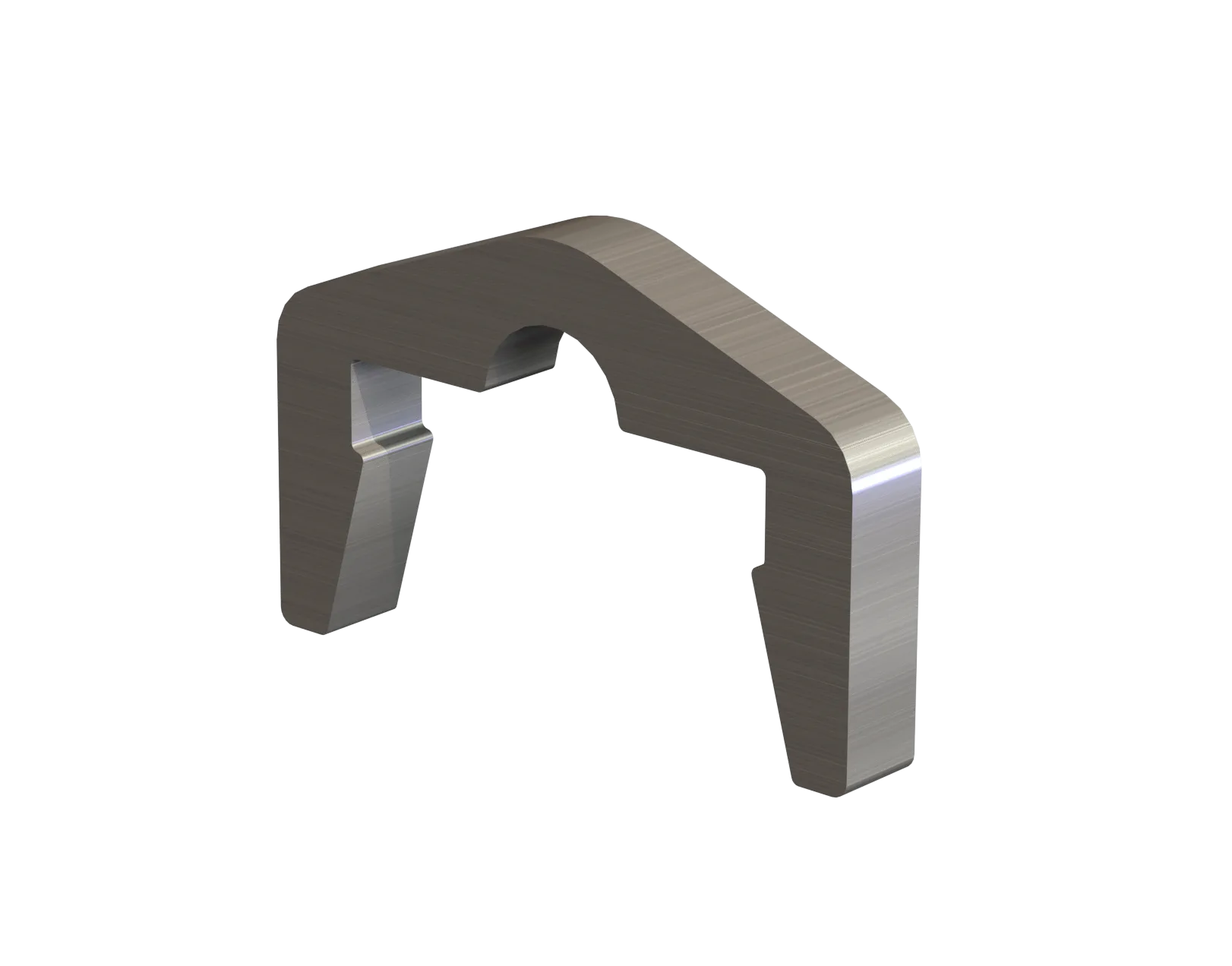

TS01 J-ClipTM Spacer |
|
| Maximum allowable uplift load (proven to tile breakage point |
| Value | > 6kN per m2 |
J-clip is compatible with
Pyro+Echo porcelain paving
Assemble the Box Rail system in the normal way Pyro + Echo is an innovative brand which has perfected the method of supplying external porcelain tiles with a rebated groove slot to receive the J-Clip and allow for the permanent restraint of the tile. With an extensive colour selection and industry leading service levels combining Pyro + Echo tiles with MyDek’s J-Clip and support system is the perfect partnership for the success of your project.
Introducing Pyro+Echo’s range
of popular porcelain tile finishes
Pyro + Echo’s new core range of 2cm tiles offers a variety of colours, sizes and finishes that are both cost effective and provide lasting quality. Perfect for use on terraces in luxury developments, these tiles offer superior resistance to the elements while providing an attractive aesthetic. With our new collection, you can be sure of finding something that meets your needs without compromising on durability or style.
