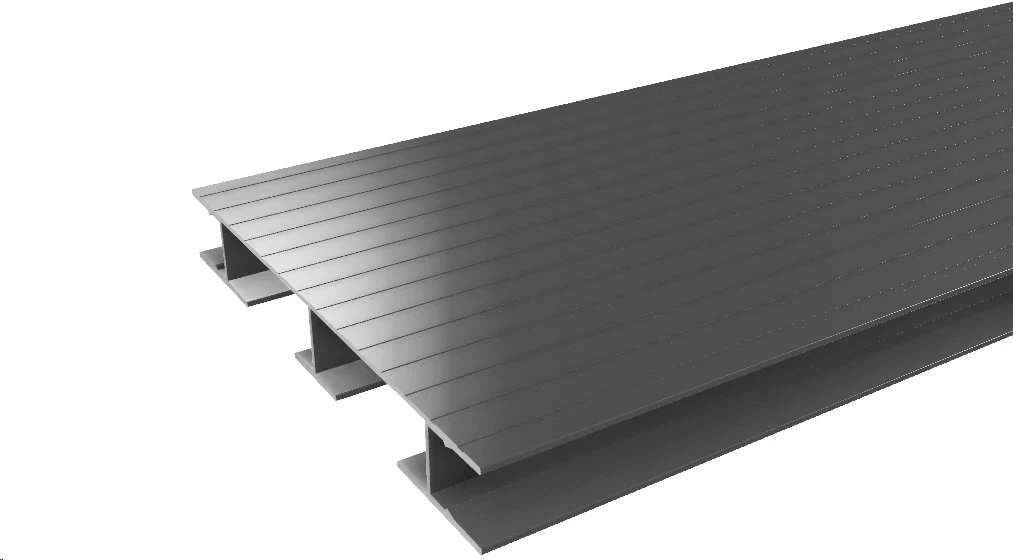

Innova A2 Fire Rated aluminium decking board
The low-cost board for the budget-conscious project. Whilst maintaining the great good looks and meeting the demanding performance criteria for non-combustibility, slip and wear resistance, Innova is a lighter weight profile that provides a solution at a lower price point than the other boards in the MyDek® collection.
The simple clip and screw fastening works perfectly with the Economy sub-rail system to deliver a low-cost solution with complete peace of mind. Available in a range of standard colours, Innova will provide a compliant solution for your non-combustible decking needs. Complete with its simple fixing method for rapid and accurate installation, the secure clip system enables boards to be fixed rapidly to the MyDek® Support Systems. Coated with Qualicoat Class 2 powder, Innova will keep looking great for years.Â
KEY FEATURES
- Fully certified
- Non-combustible
- Lightweight
- Concealed fixings
- Slip resistant
- 30 year warranty
COLOURS
Innova boards are available in a range of modern colours. They can also be finished with our special Naturo woodgrain pattern.
All aluminium decking samples come with a free colour swatch card.
Bespoke colours available on request:
T: +44 (0) 3300 94 94 11
E: sales@mydek.com
INSTALLATION

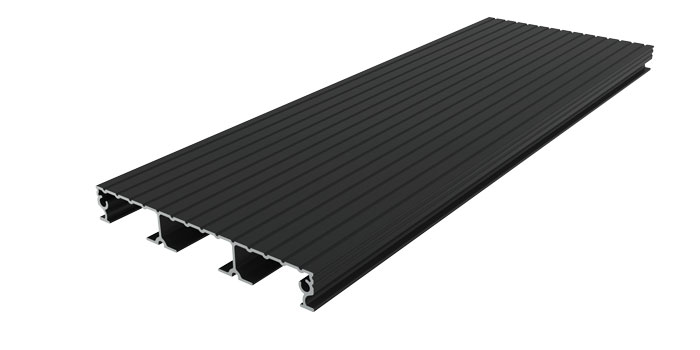

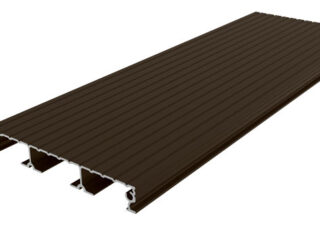

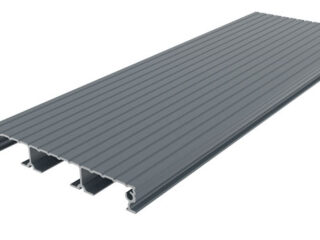

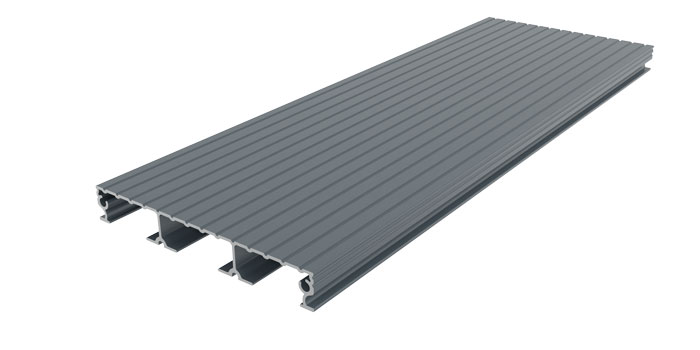

Available in a range of standard colours.
Compatible with the full range of support systems from MyDek for fast and accurate installation, Innova provides the quick and simple solution for non-combustible decking. Utilising the simple non-combustible clip system it is similar to install to traditional wood plastic composite decking.
SYSTEMS FOR ALL APPLICATIONS

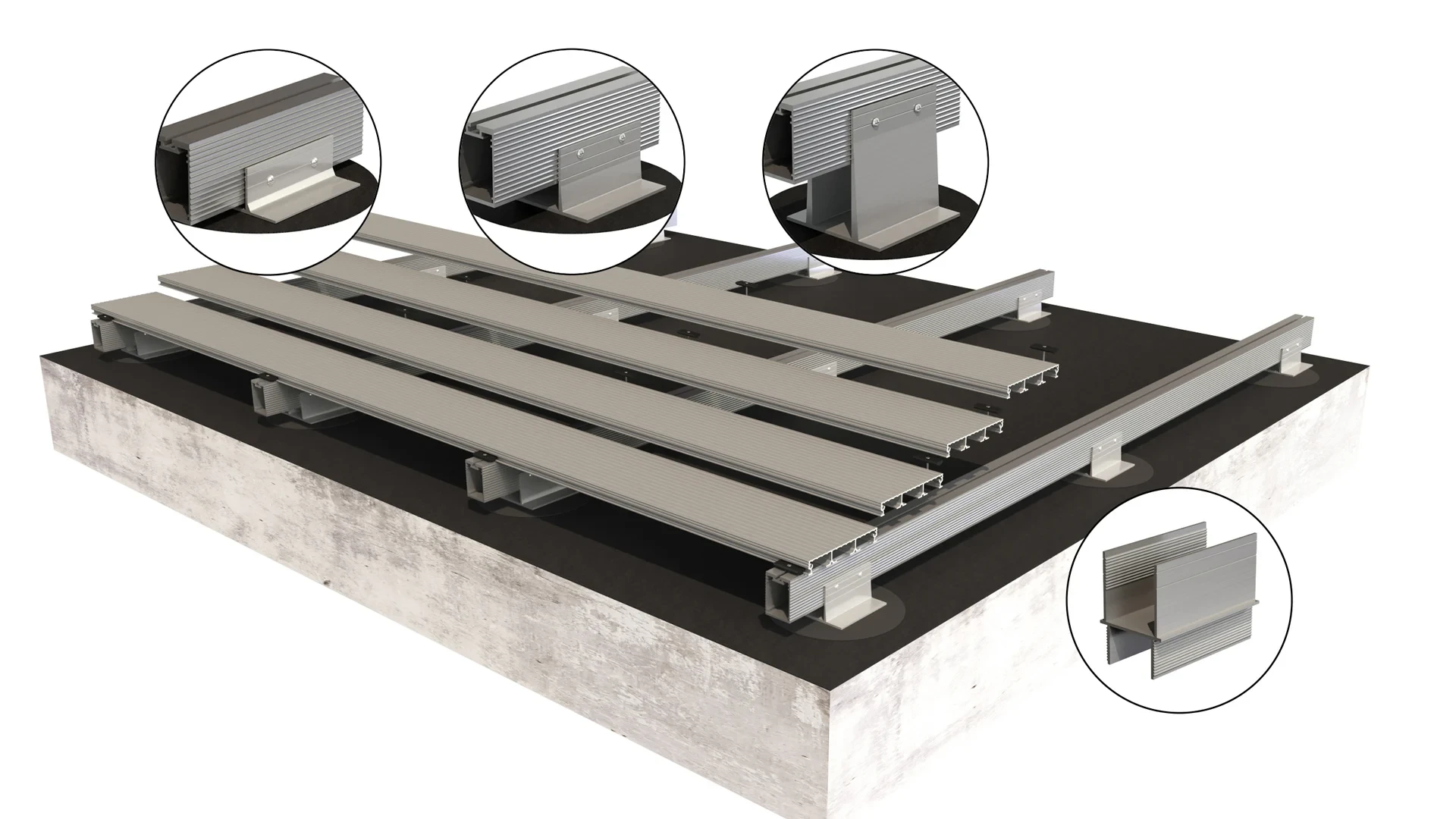

Fixed using box rail onto concrete balcony/terrace.
For smaller inset balconies and terraces where a low-cost, simple and flexible subframe system is required. The aluminium system comes with a combination of different joist and support cleat sizes allowing a versatile range of construction heights.
J-ClipTM is fully compatible with the MyDek BoxRail System
For use on balconies, terraces with a concrete or similar solid base structure, walkways, boardwalks, residential, leisure and commercial areas.
Â
Â
TECH SPECS

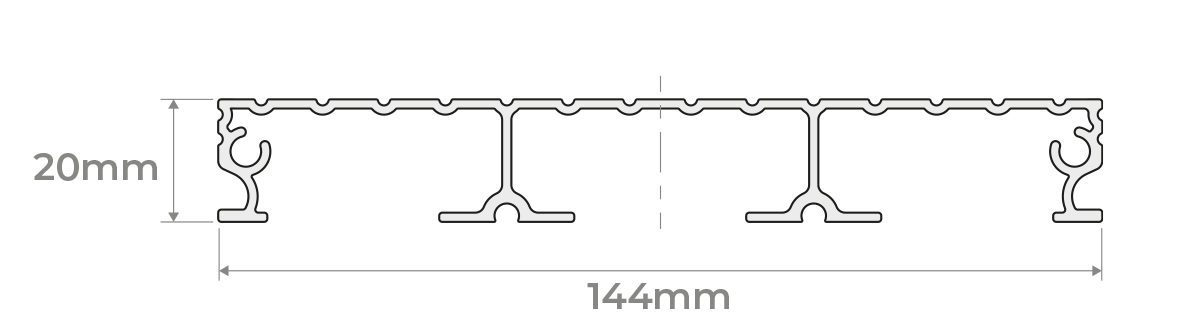

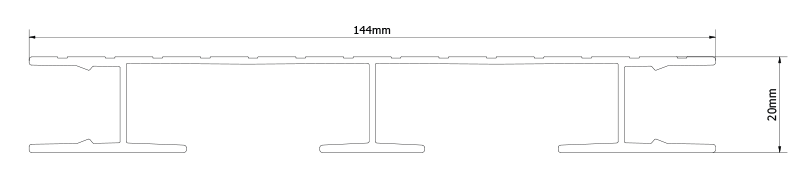

| Board width x depth | 144 x 20mm (150mm module) |
| Board length | 4.2m standard or made to order (subject to conditions) |
| Weight | 7.99 kg/sqm |
| Board | Aluminium grade 6063-T6 |
| Expansion allowance | 1mm per linear metre |
| Finish | Polyester Powder Coating – min 60 micron Super Durable, Qualicoat Class 2 powder |
| Decking board | UB12 |
| Basic Clip (screw-fixed) | UB01 |
| RAL | 7016, 7037, 7039, 7040, 8014, 8019 |
| For use on | For use on balconies, walkways, roof terraces, leisure areas and patios. |
Profiles are packaged with protection against scratching and contamination, and supplied with appropriate support (e.g. stillage or pallet). Ensure that this level of protection is maintained until installation, including storage in dry conditions and support along the length of the profiles. Improper storage may lead to damage that falls outside the warranty.
| QUALITY | STANDARD | VALUE | LIMIT |
| Fire test (polyester powder coated) | EN13501 – 1 A1:2013 | A2-s1,d0 | A2-s1,d0 |

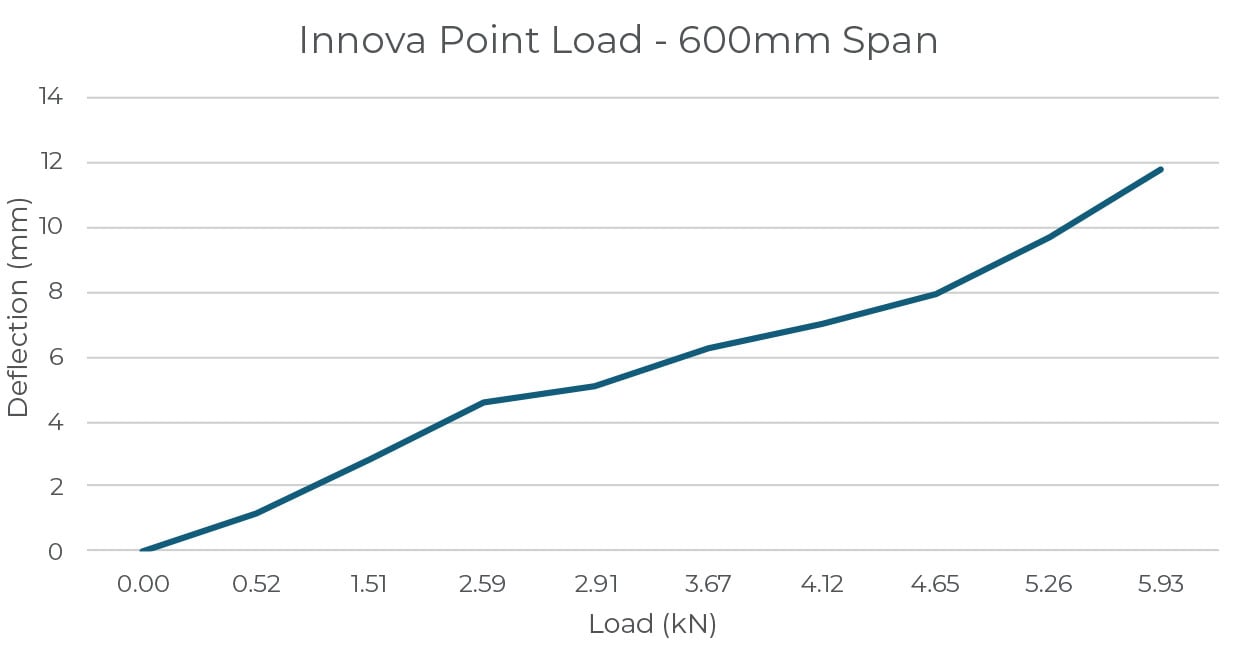

| Deflection – 2KN at 600mm span | EN310 | 1.21mm | <5mm |
| Slip resistance – Wet | BS7976 -2 Pendulum Slip Test | 38 PTV | >36 |
| Slip resistance – Dry | Â | 56 PTV | >36 |
| Coefficient of thermal expansion | N/A | 0.024mm/m/°C | – |
| Coating Durability | Qualicoat Class 2 powder | Â | – |
|
Accelerated wear test (biomechanical – see appendix 1) |
TM391:2016 | ‘Very Slight’ at 50K ‘Slight’ at 100K | – |
| Furniture leg test (scratching) | EN424:2001 | No damage. Slight transfer | Â |
| Coating Adhesion | ISO-0 ASTM-5B | No separation | – |
| UV Stability | ISO2810 | Class 2 | 3-year Florida |
| Embodied Carbon | 0.0517 tonnes/m2 |
1. BIOMECHANICAL ACCELERATED WEAR TEST SATRA TM391:2016
This test has been carried out in accordance with SATRA TM391:2016 for assessing floor coverings using a walking machine, where a standard shoe (having a patterned sole with a tread depth of 5mm ± 0.5mm and Shore A hardness of 54 is mounted on a foot form that is attached to a walking machine. The flooring specimen is subjected to a cyclic walking action from the standard shoe, where the specimen rotates incrementally whilst the forepart is in contact with the sample. These individual footsteps are designed to replicate a mixture of walking in a straight line and turning a corner. The flooring sample under test rotates such that is completes a 360° rotation every 150 footfalls.
