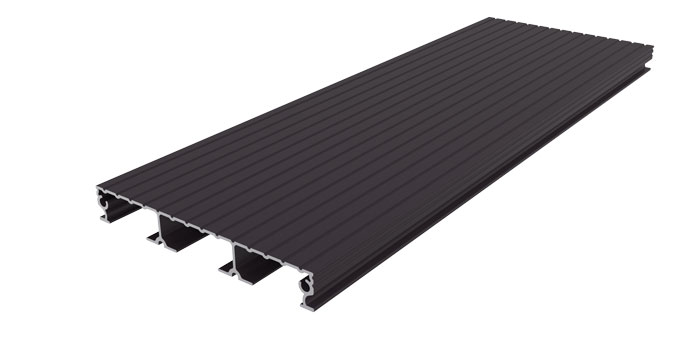

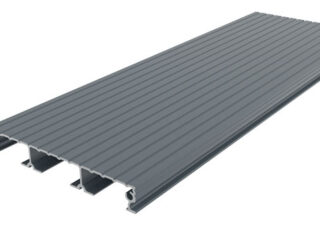

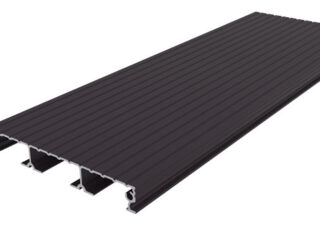

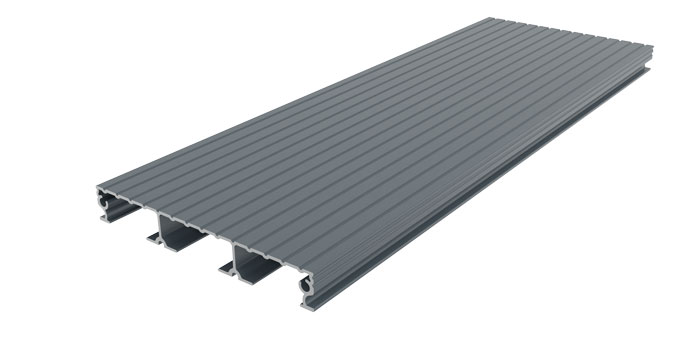

VistaThe Efficient Aluminium Decking
The original high-performance decking board from MyDek®. Solid, uncompromising and with a classic sleek appearance, the Vista board is chosen by customers that want superb quality, great value and outstanding performance. Complete with its simple fixing method for rapid and accurate installation, the special hidden clip system also enables boards to be fixed into position and removed quickly and simply if required.
Available in the popular range of 6 standard colours, Vista is your ultimate choice for performance in non-combustible decking.
KEY FEATURES
- Fully certified
- Non-combustible
- Lightweight
- Concealed fixings
- Slip resistant
- 30 year warranty
- B60 year design life
COLOURS
Vista boards are available in a range of modern colours etc. They can also be finished with our special Naturo woodgrain pattern.
INSTALLATION
Available in a range of standard colours.
Able to be coupled with the MyDek Terrace System for inset concrete balconies and roof terraces, Innova provides the quick and simple solution for non-combustible decking. Utilising the simple non-combustible clip system it is similar to install to traditional wood plastic composite decking.
SYSTEMS FOR ALL APPLICATIONS
Fixed using box rail onto concrete balcony/terrace.
For smaller inset balconies and terraces where a low-cost, simple and flexible subframe system is required. The aluminium system comes with a combination of different joist and support cleat sizes allowing a versatile range of construction heights.
J-ClipTM is fully compatible with the MyDek BoxRail System
For use on balconies, terraces with a concrete or similar solid base structure, walkways, boardwalks, residential, leisure and commercial areas.
TECH SPECS

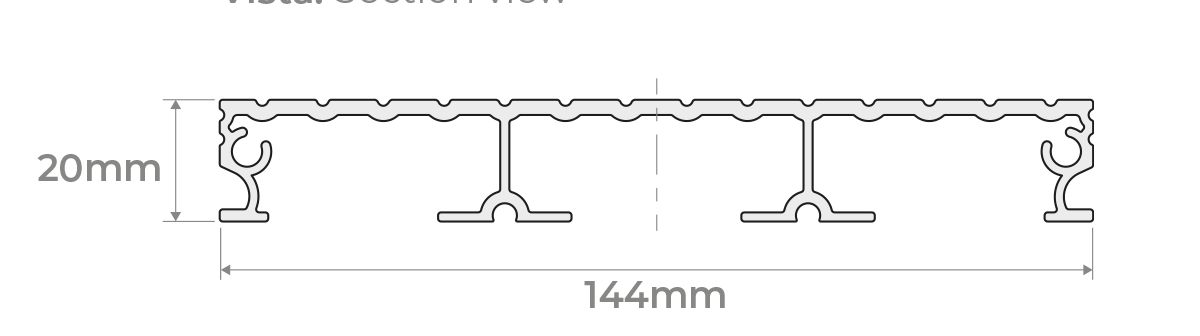

| Board width x depth | 144 x 20mm |
| Board length | 4.2m or cut-to-length (subject to conditions) |
| Weight | 11.22kg/sqm |
| Board | Aluminium grade 6063-T6 |
| Expansion allowance | 1mm per linear metre |
| Finish | Polyester Powder Coating – 80micron slip-resistant |
| SupportRail™ | Aluminium grade 5251 (structural grade) |
| Decking board | BD04 |

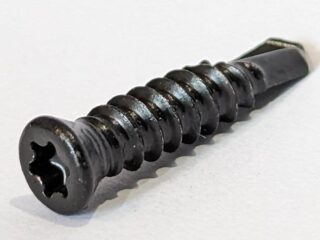

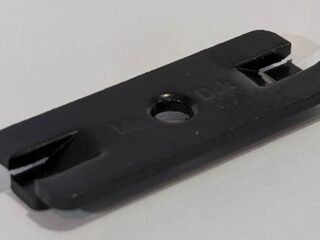

| Basic Clip (screw-fixed) | CB01 |
| RAL | 7016, 7037, 7039, 7040, 8014, 8019 |
| For use on | Balconies, walkways, roof terraces, leisure areas and patios. |
Profiles are packaged with protection against scratching and contamination, and supplied with appropriate support (e.g. stillage or pallet). Ensure that this level of protection is maintained until installation, including storage in dry conditions and support along the length of the profiles. Improper storage may lead to damage that falls outside the warranty.
| QUALITY | STANDARD | VALUE | LIMIT |
| Fire test (polyester powder coated) | EN 13501 – 1 A1:2013 | A2-s1,d0 | A2-s1,d0 |
| Deflection – 80KG at 600mm span | EN310 | 1.05mm | <5mm |
| Deflection – 2KN at 600mm span | EN310 | 3.13mm | <5mm |
| Slip resistance - Wet | BS7976 -2 Pendulum Slip Test | 39.5 PTV | >36 |
| Slip resistance - Dry | BS7976 -2 Pendulum Slip Test | 59 PTV | >36 |
| Coefficient of thermal expansion | N/A | 59 PTV | >36 |
| Coating Durability | Qualicoat Class 2 powder | ||
|
Accelerated wear test (biomechanical - see appendix 1.1) |
TM391:2016 |
‘Very Slight’ at 50K ‘Slight’ at 100K |
- |
| Furniture leg test (scratching) | EN424:2001 | No damage Slight transfer | |
| Coating Adhesion | ISO-0 ASTM-5B | No separation | - |
| UV Stability | ISO2810 | Class 2 | 3-year Florida |
| SUSTAINABILITY | VALUE | ||
| Embodied Carbon | 0. 089 tonnes/m2 |

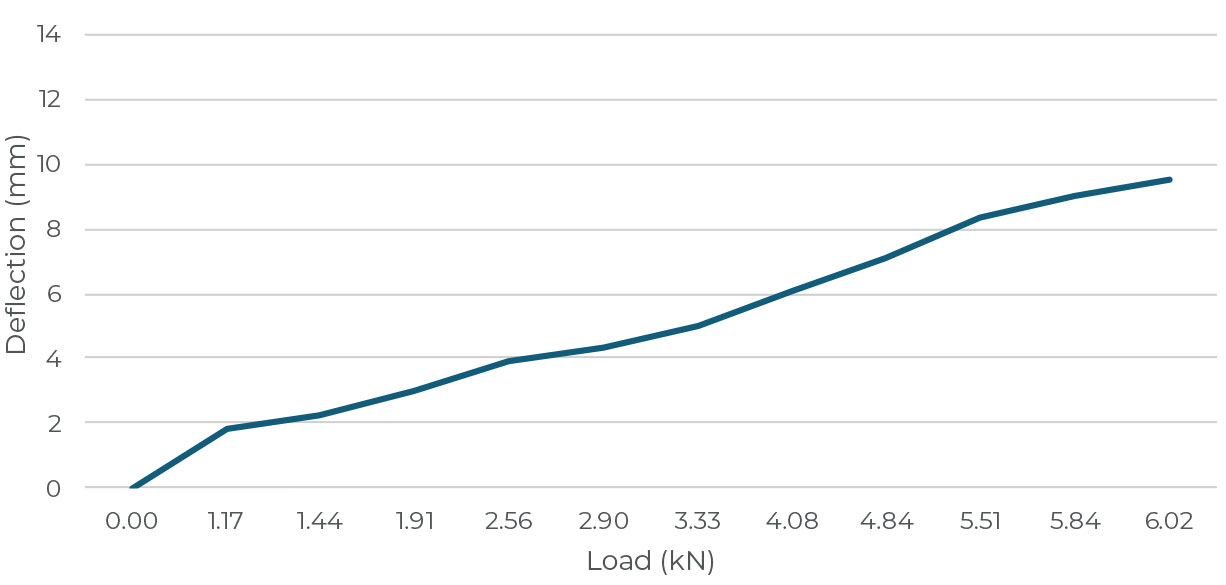

Deflection under load
NBS SPECIFICATION
Related products and services

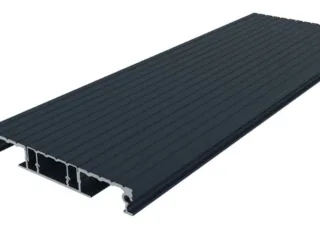

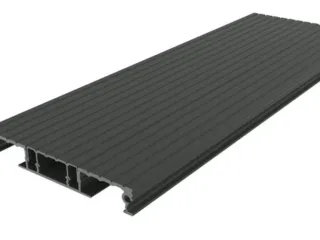

Delta20 is the low-profile board option for direct fixing to steel balcony frames without clips. The simple clip-in cover conceals all fixings, and enables quick and easy installation to a variety of substrates using standard self-drill fixings.
No clips required! Delta30 provides an outstanding span of up to 1200mm which means that less substructure supports are required thus reducing material costs and installation times.
Available in a range of standard colours, Innova will provide a compliant solution for your non-combustible decking needs. Complete with its simple fixing method for rapid and accurate installation, the secure clip system enables boards to be fixed ...

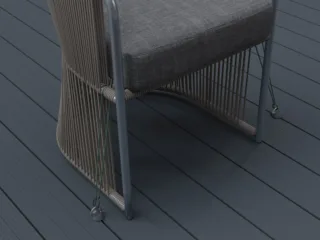

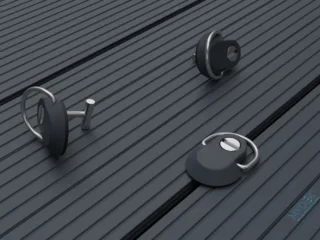

The new furniture anchor from MyDek is designed to work with the full range of aluminium decking boards. Tough enough to withstand wind loadings yet neat and unobtrusive, this clip is simple to fit and can easily be ...
