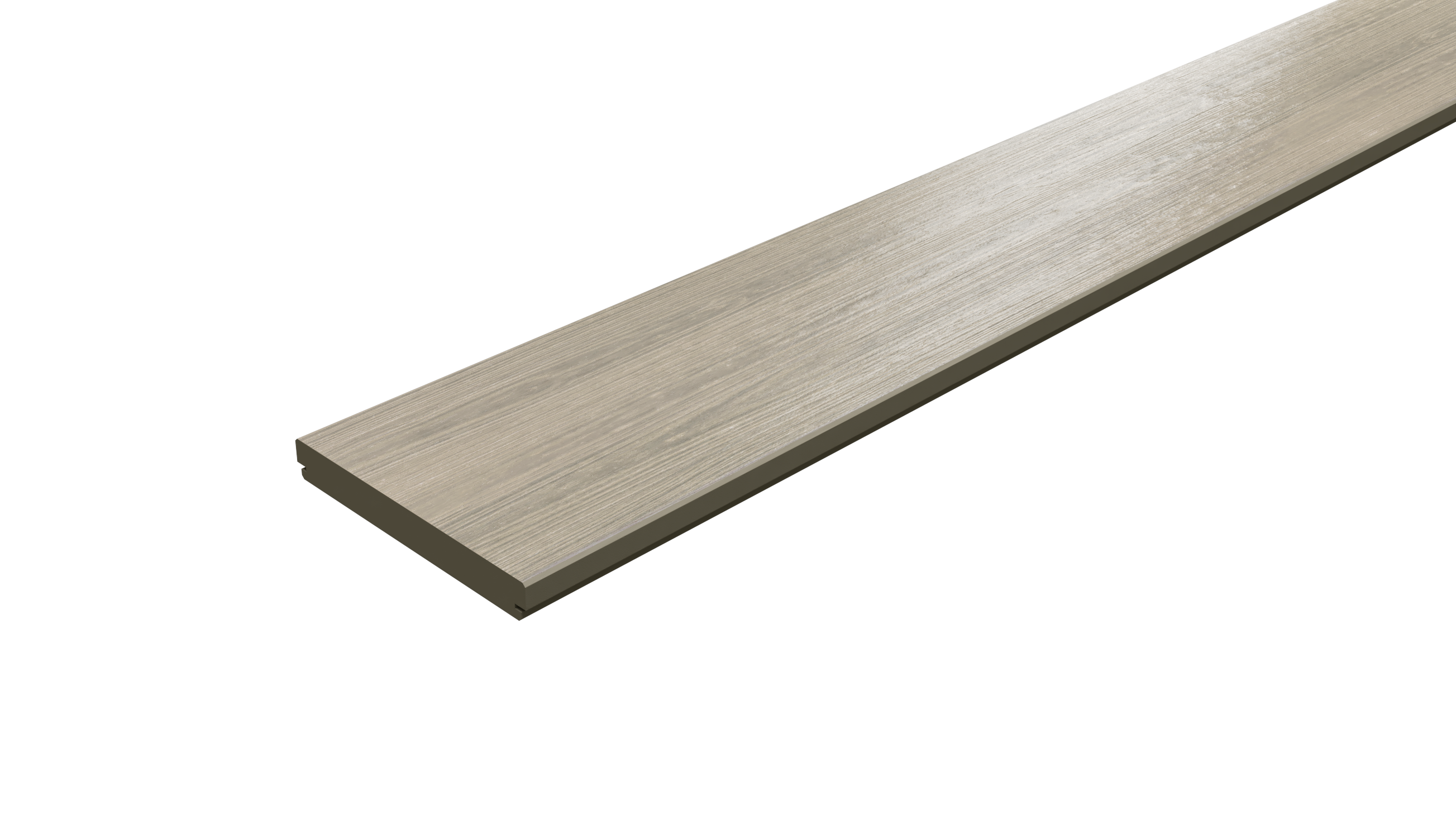

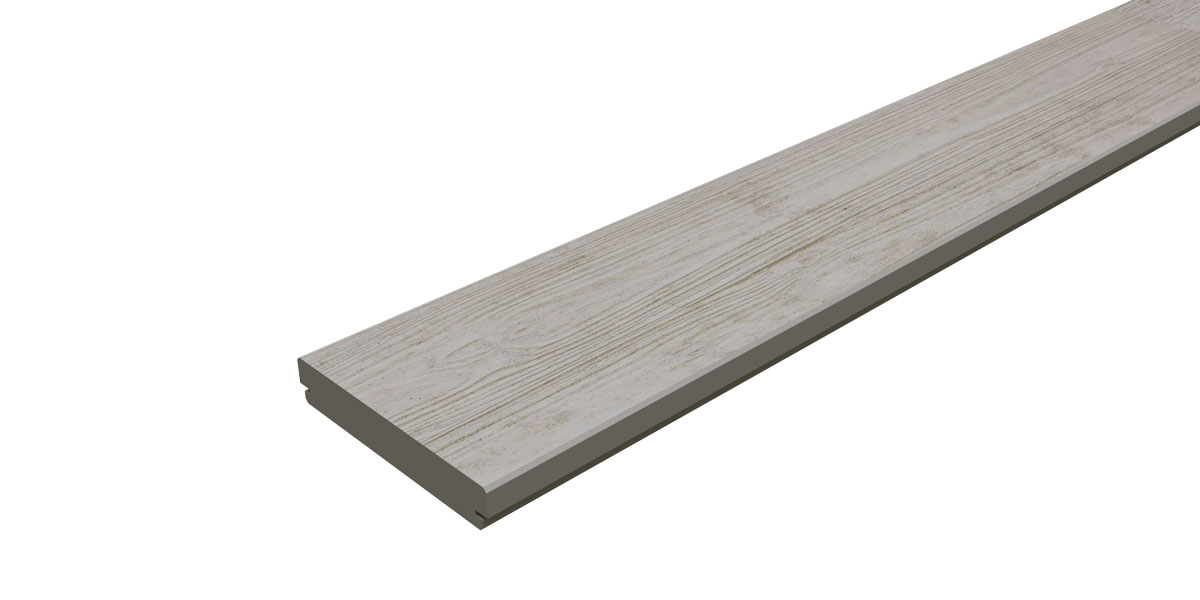

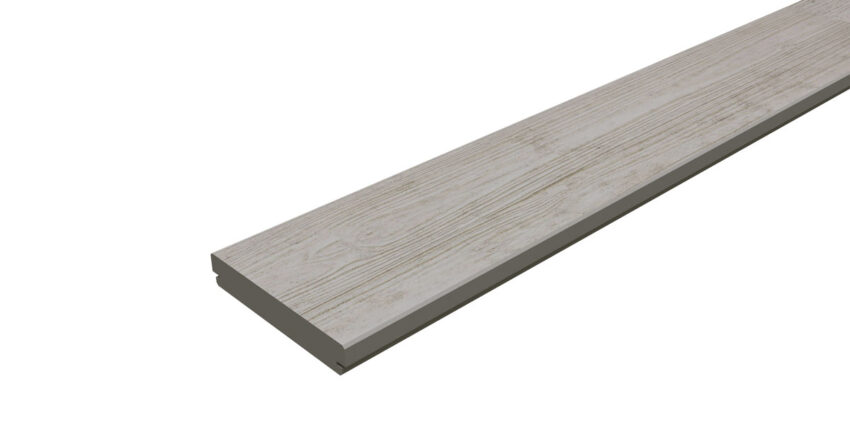

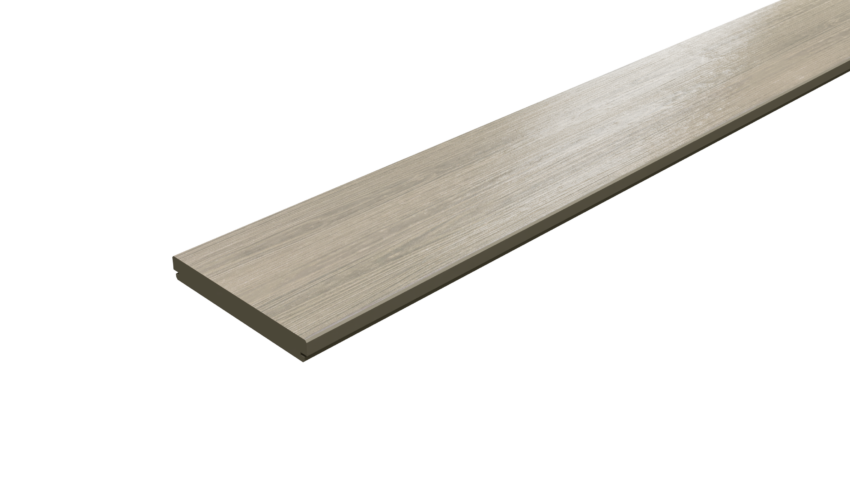

Luxura® Deck 200 A1 Fire Rated Mineral Composite Decking Board
The Luxura® Deck 200 mineral composite fire rated decking board is a wider board module with a woodgrain finish for a more contemporary appearance. Available in Aged Oak and Hickory colours, this board has a 200mm design module which gives a bold and clean appearance much like a machined hardwood deck.
Luxura® can be fixed either with a simple concealed clip fixing or by fixing directly through the board if needed.
KEY FEATURES
Luxura® Deck simply delivers unrivalled benefits:
- Natural woodgrain timber-look aesthetic
- A1 Non-combustible fire rating
- Hard wearing mineral composite for ultimate durability
- Exceptional slip and wear resistance
- Stain resistant, easy-clean surface
- Stays cool underfoot in hot weather
- Will never warp, twist or rot
- 30 year warranty
- 60 year design life

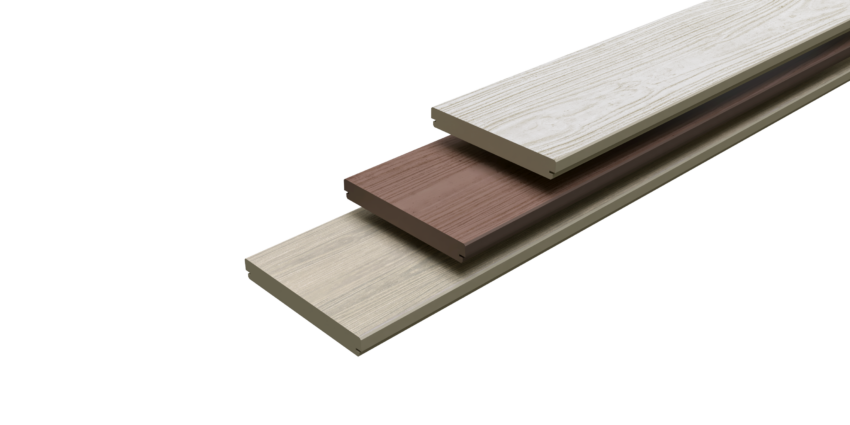

COLOURS

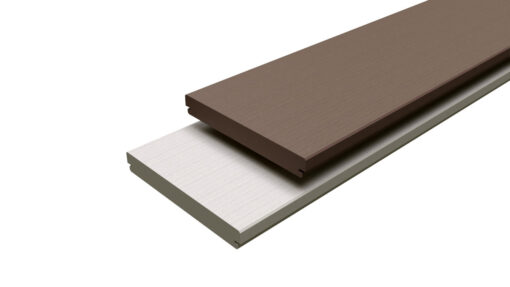

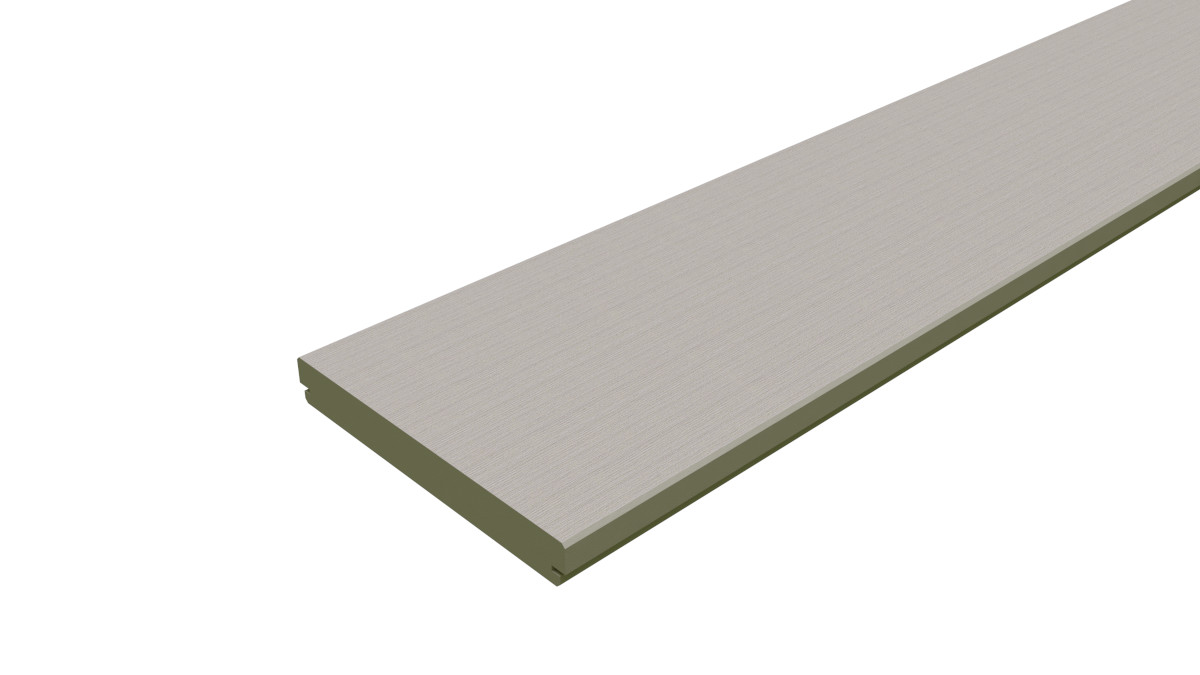

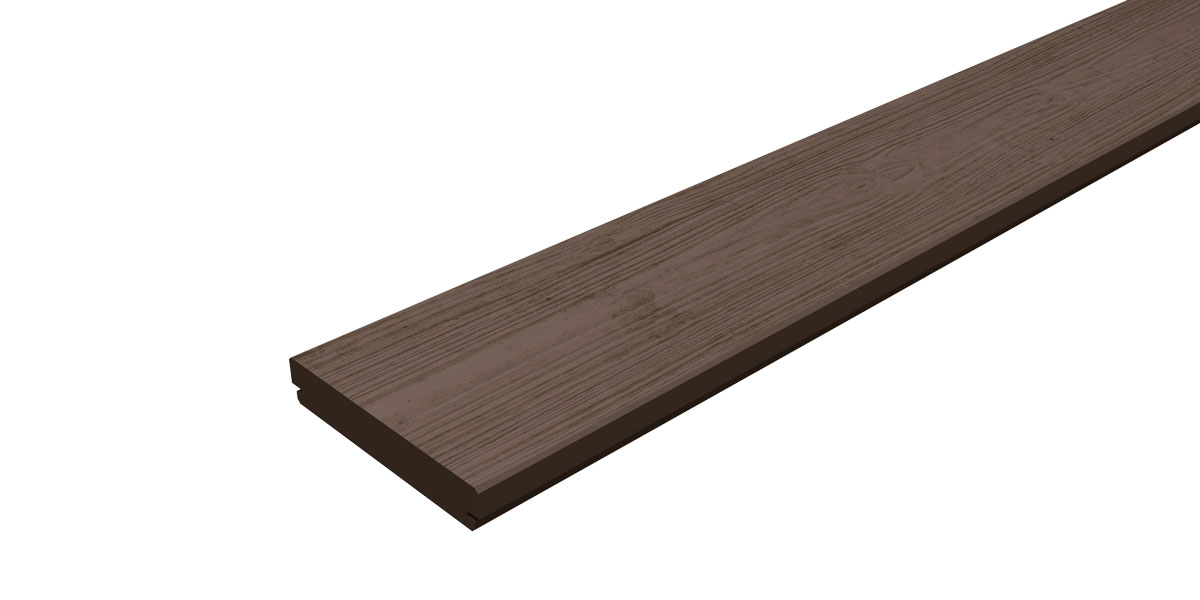

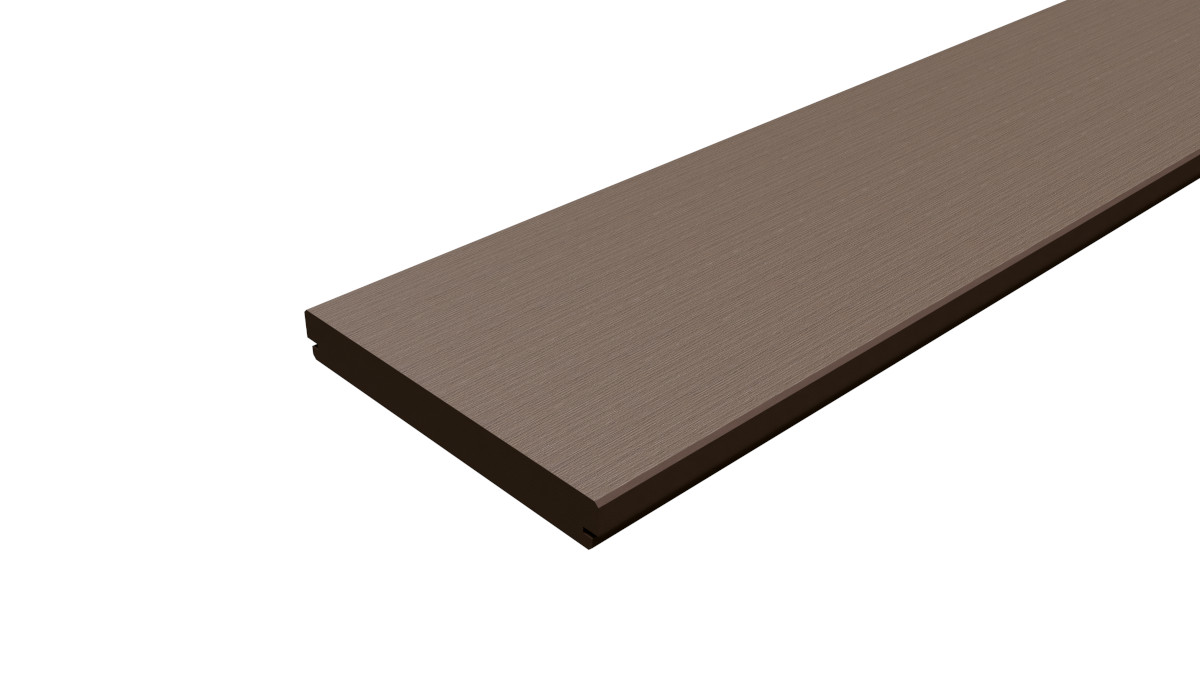

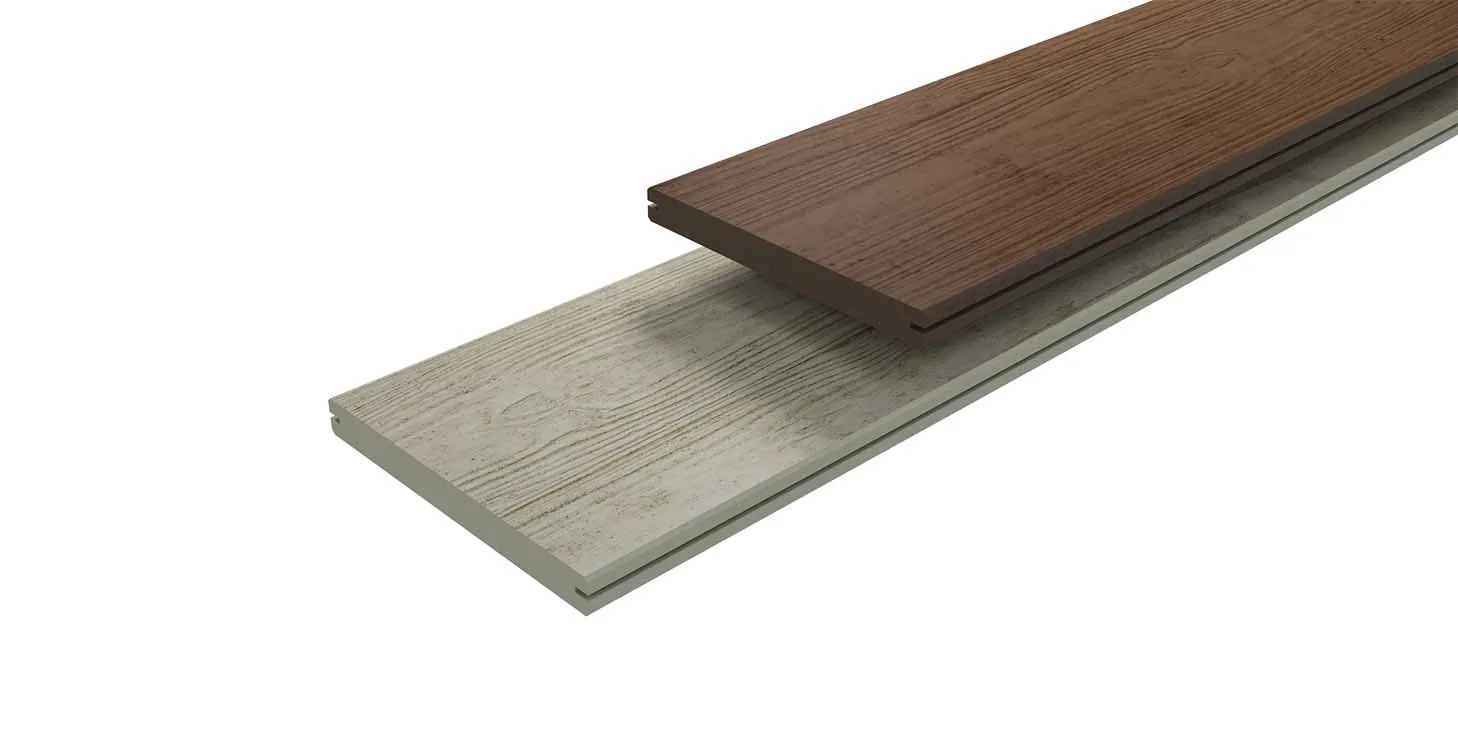

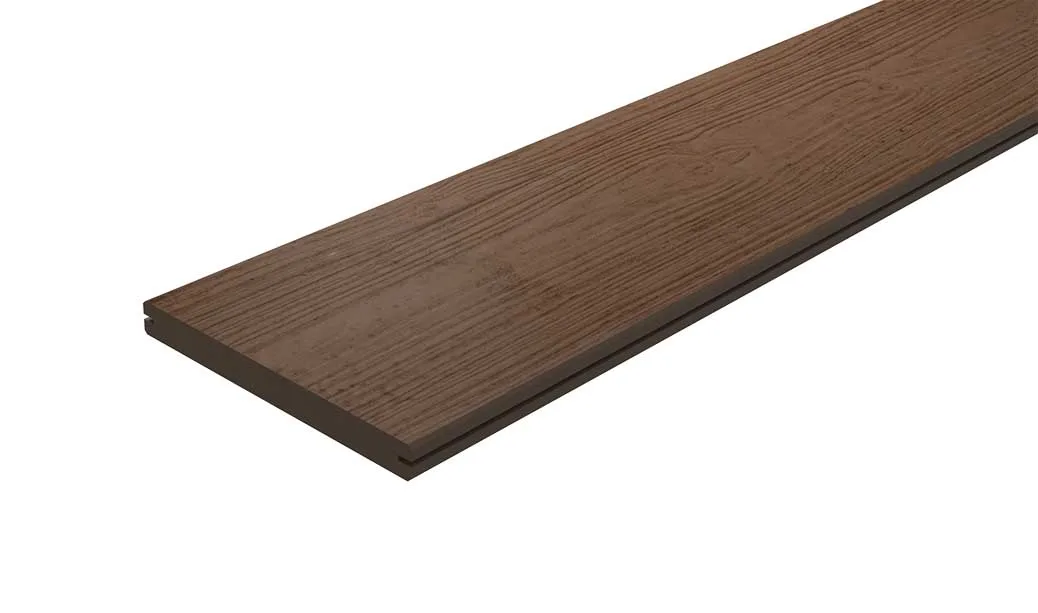

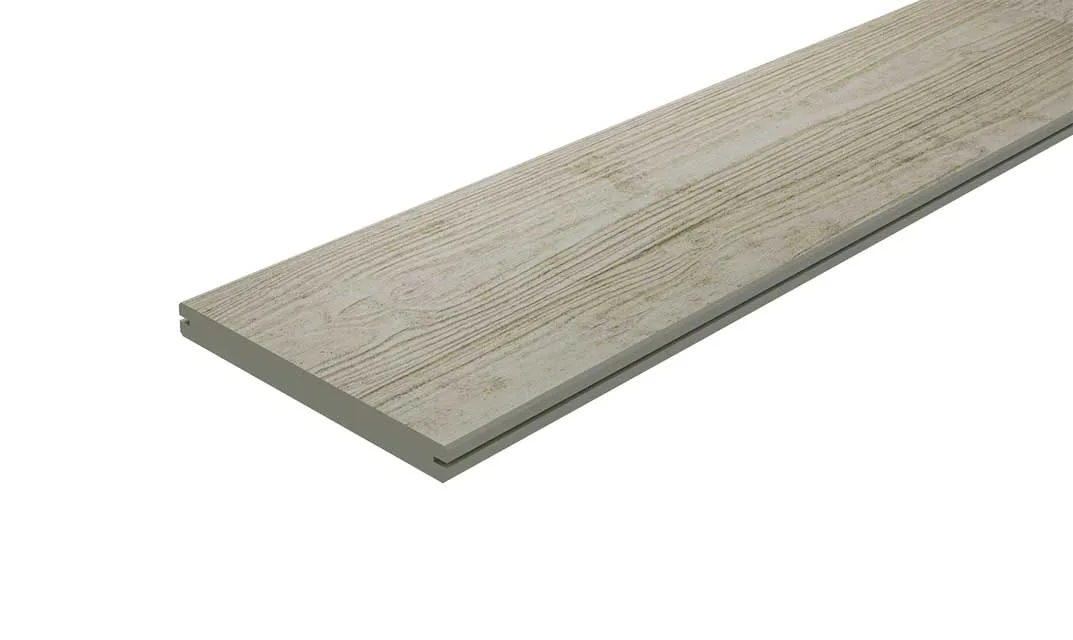

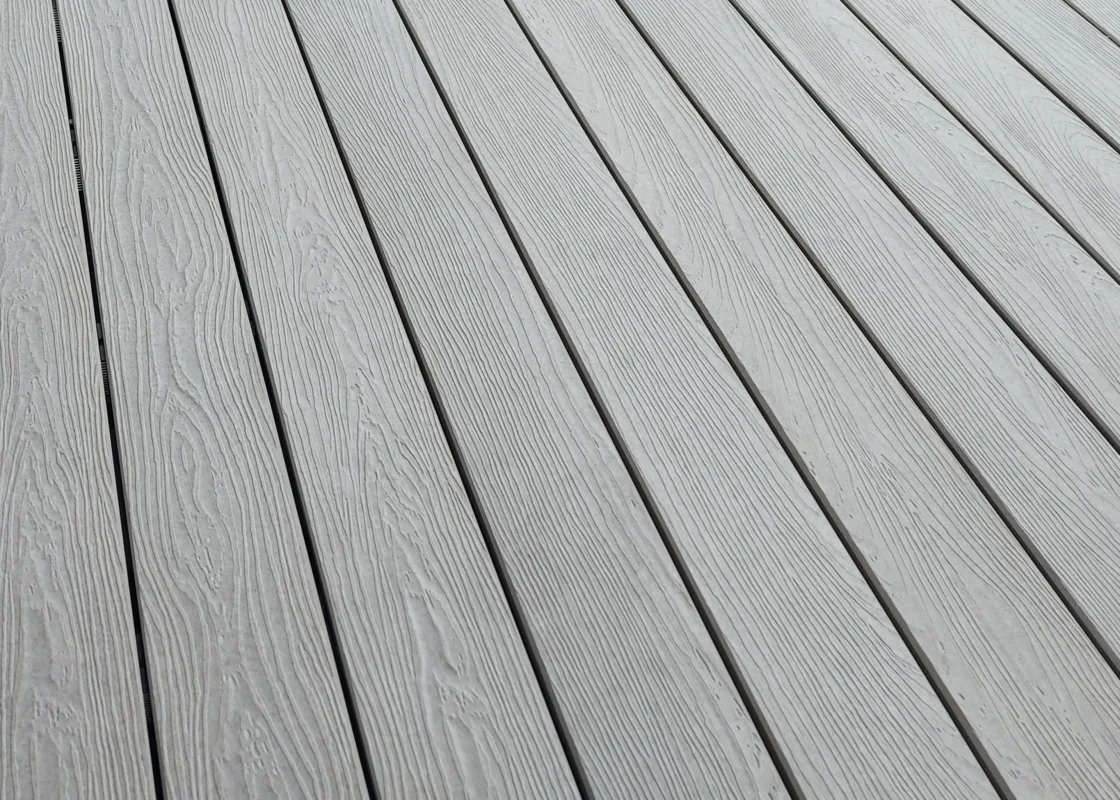

Luxura® Deck is available in Natural Aged Oak or Natural Hickory. They are finished with our special Luxura woodgrain pattern.
Please note: due to the natural content of this product, there may be a slight colour variation between batches, these natural raw materials also do change colour dependant on the climate that the boards are installed in and will also change dependant on weather at the time like any other natural product does.
INSTALLATION
Luxura® Deck 200 can be installed onto any of MyDek’s subframe systems as well as onto steel frame projecting balconies. Additionally, where needed, the boards can be cut required widths and surface fixed through the board. Safe, Smart, Sustainable. MyDek. Made to be Your Choice.
Where can Luxura Deck 200 be used?

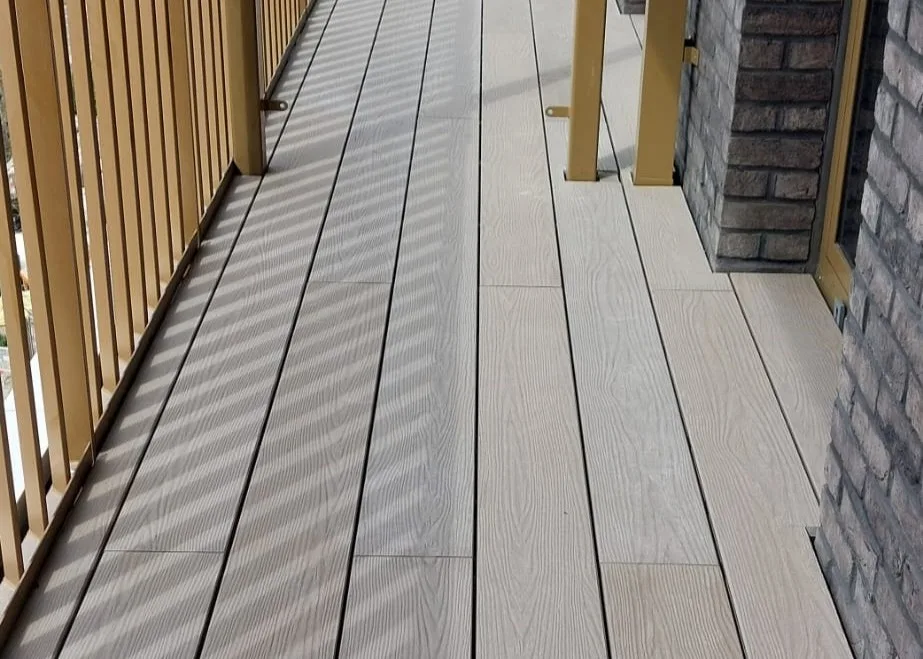

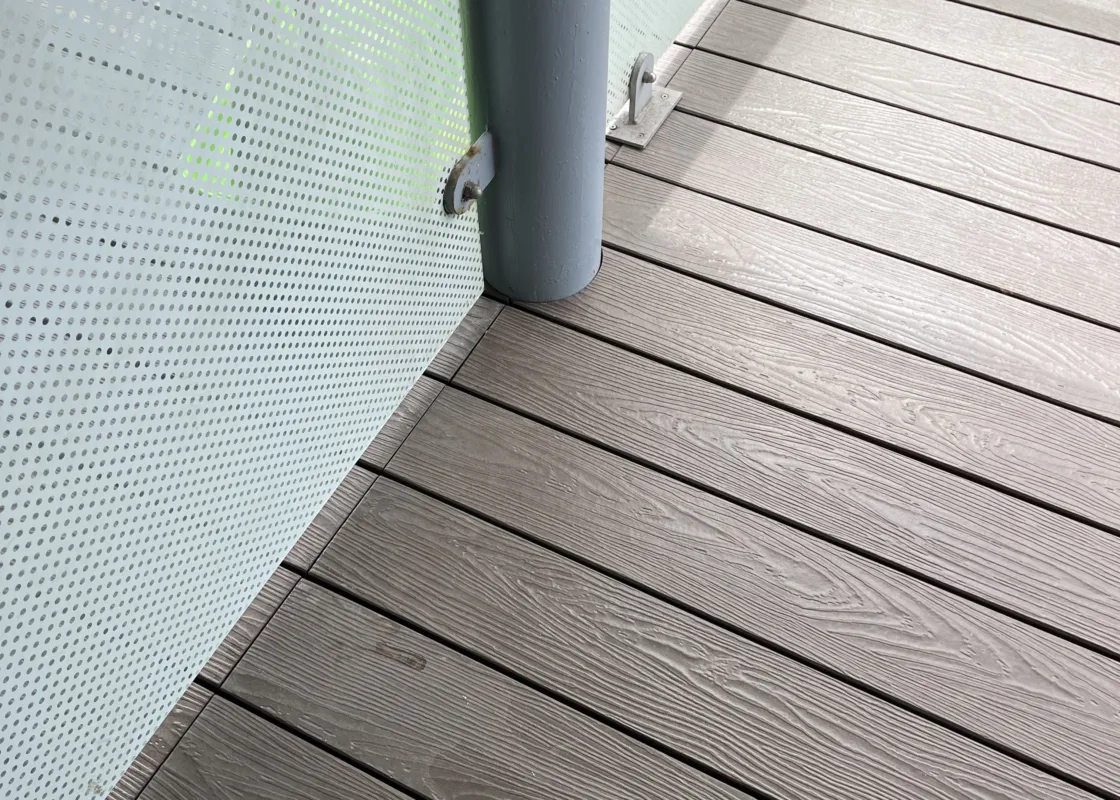

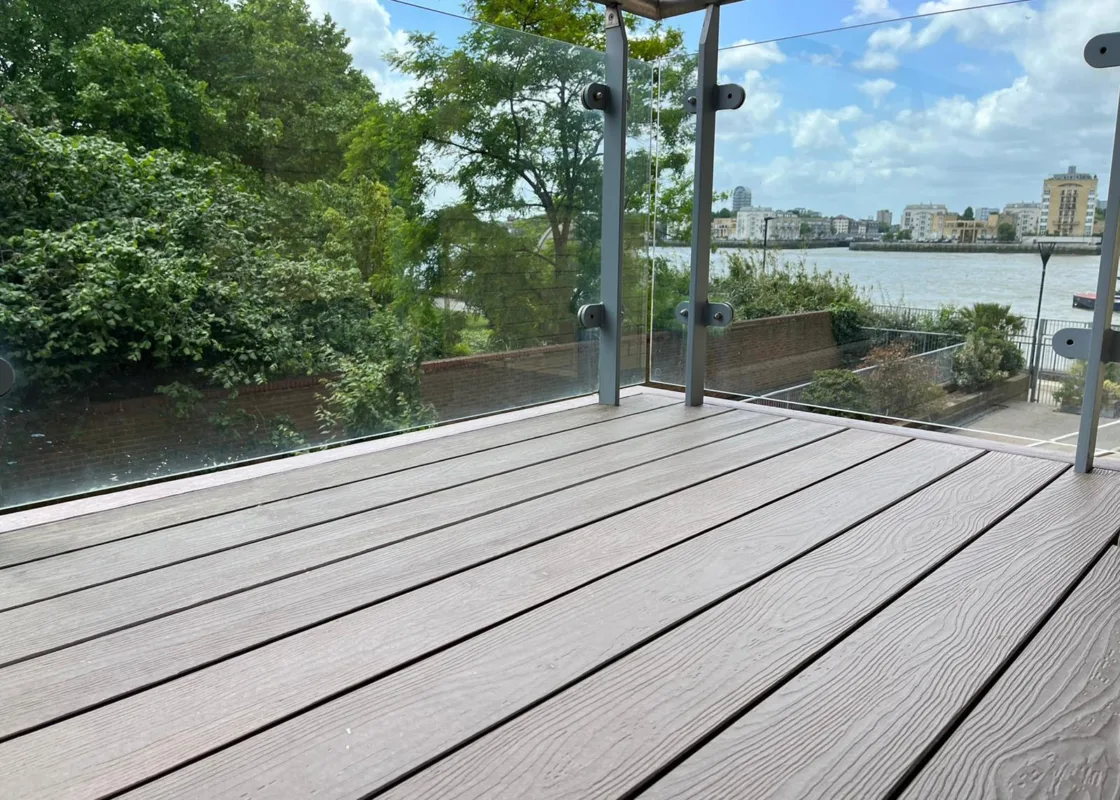

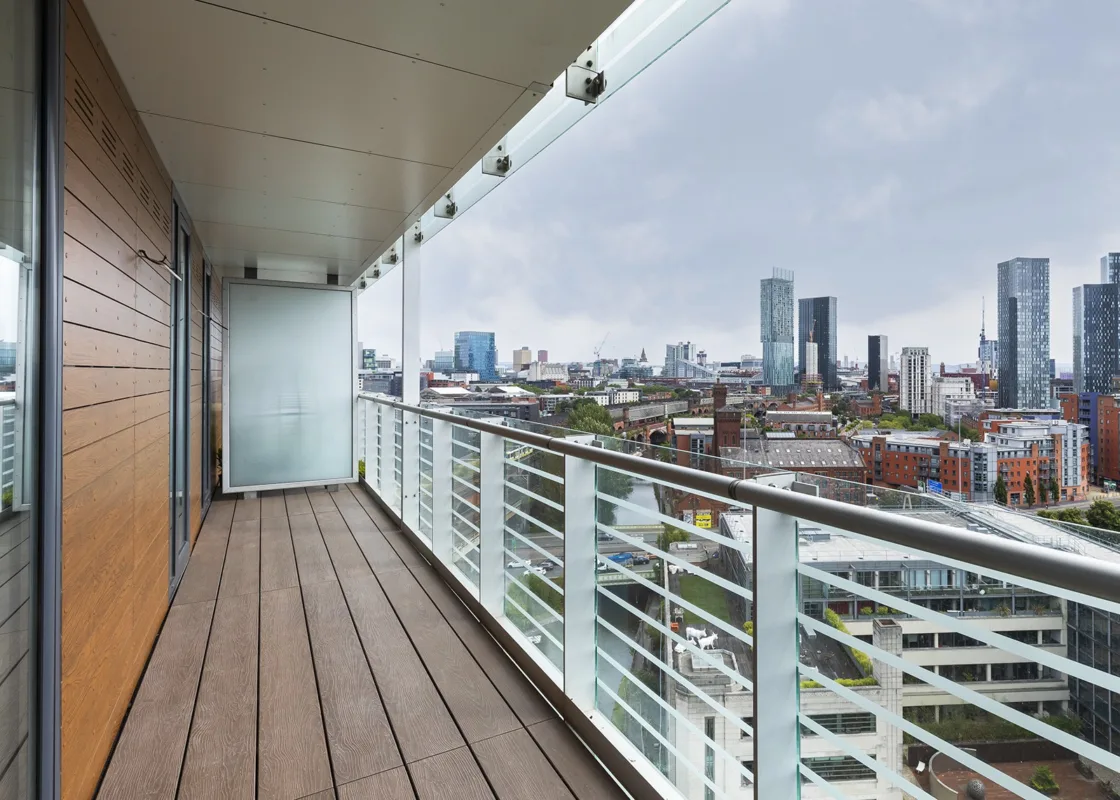

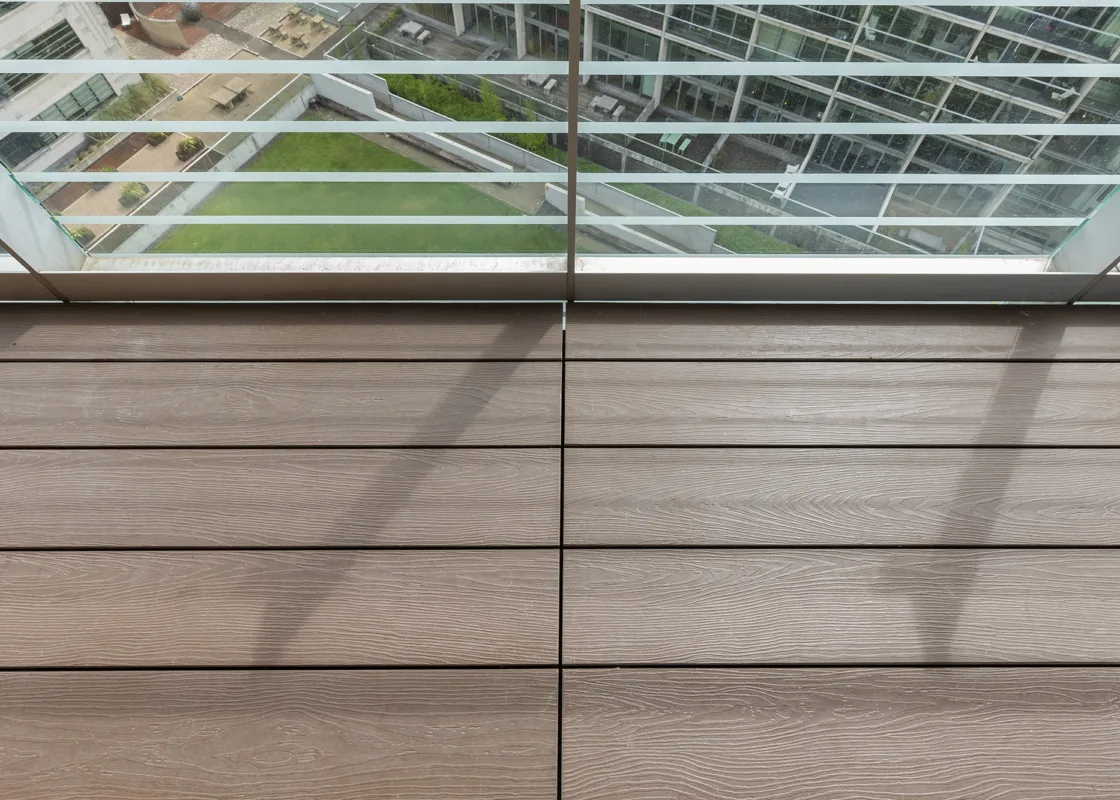

- High-rise residential balconies and terraces
- Hospitality and Commercial decks and terraces
- Boardwalks, swimming pool decks and pontoons
- Domestic decks and patios
SYSTEMS FOR ALL APPLICATIONS

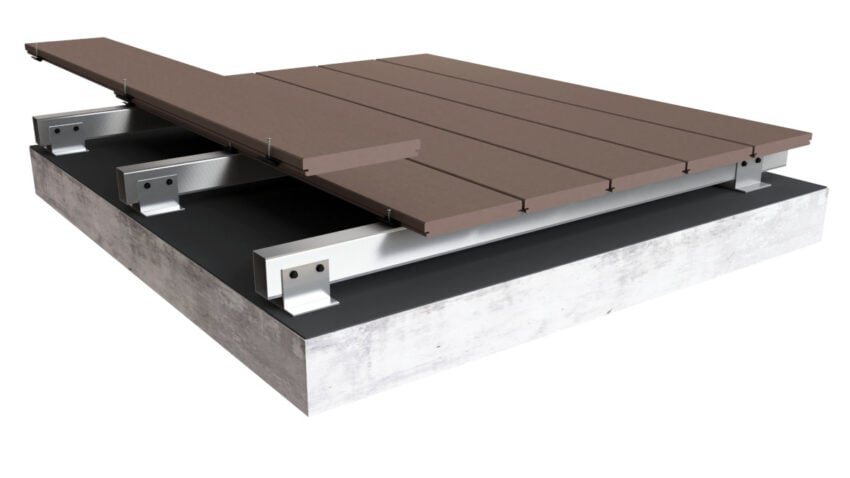

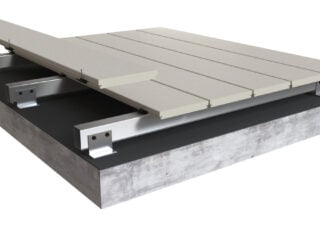

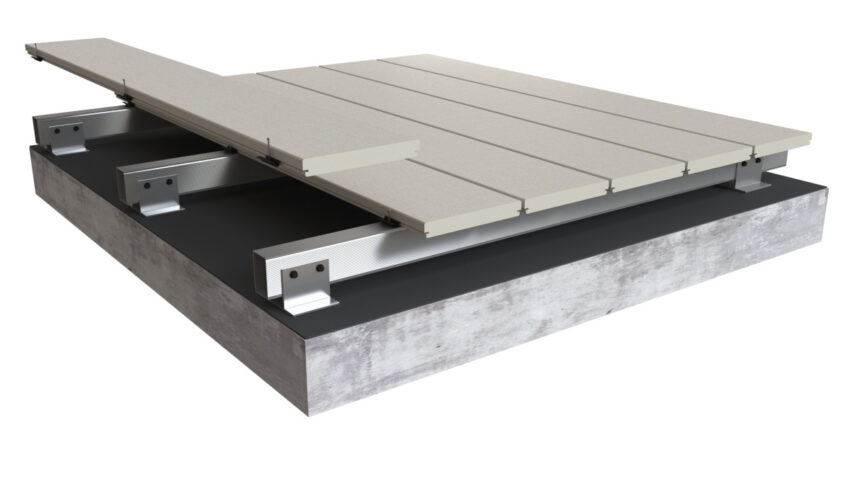

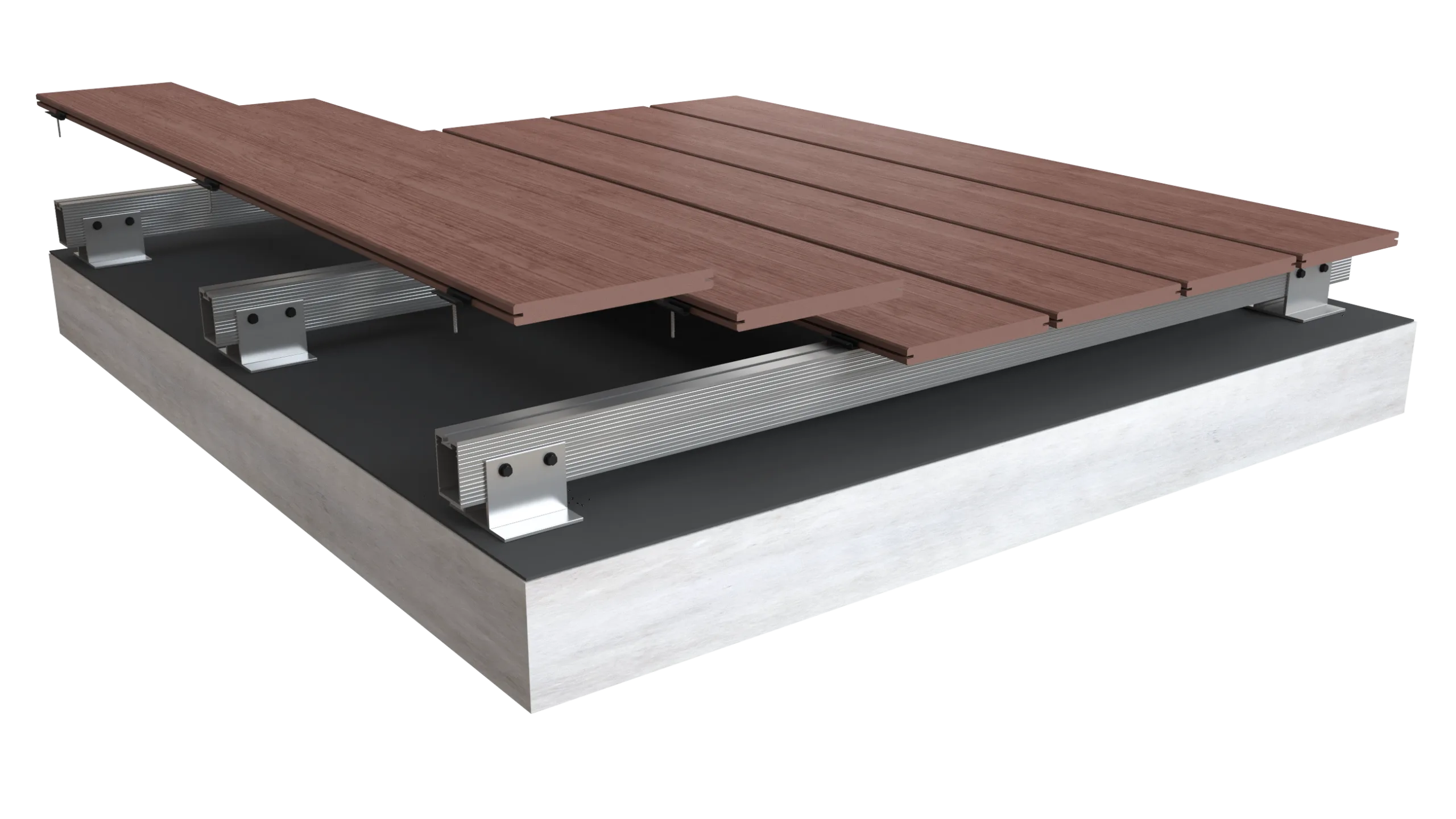

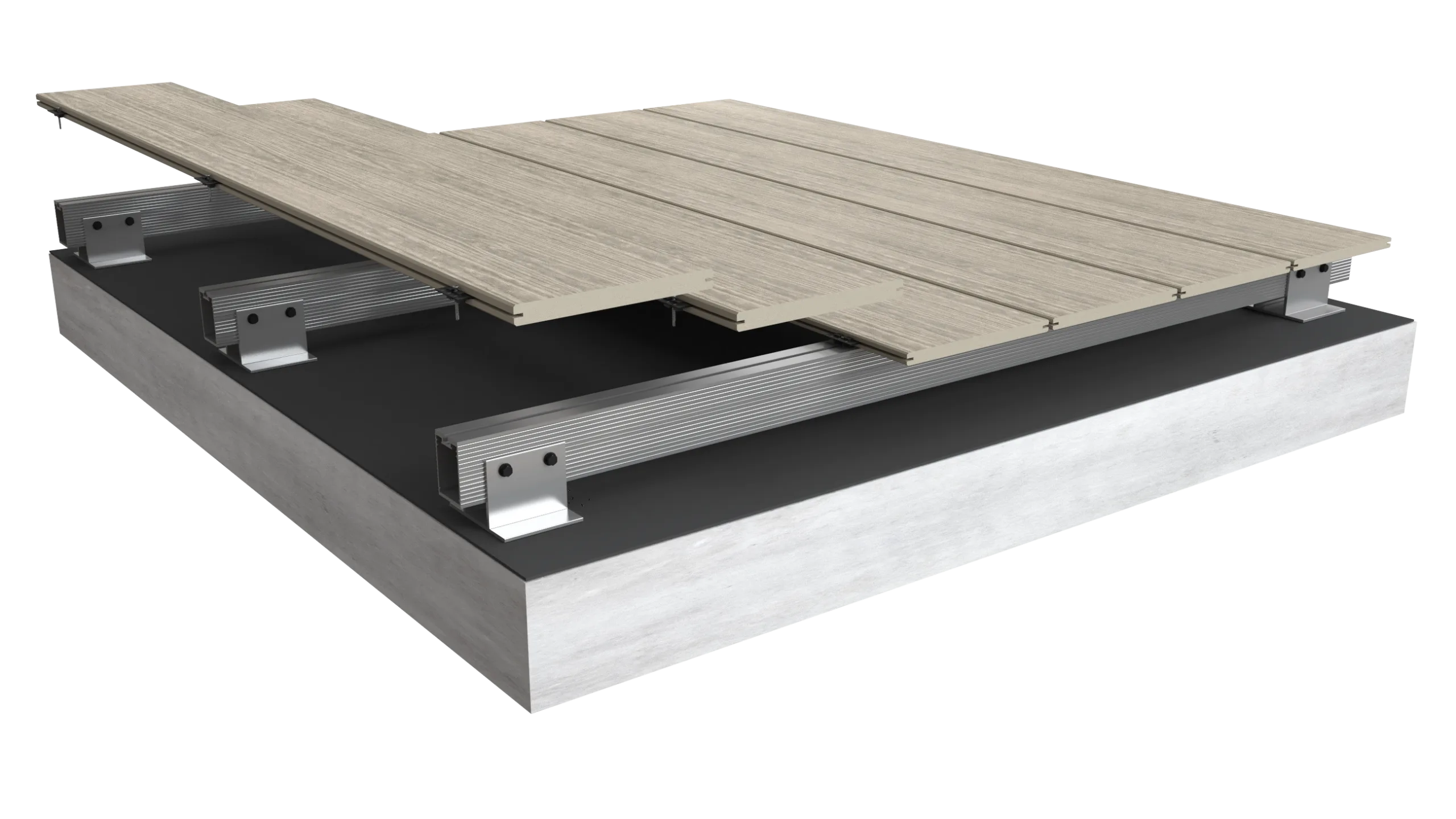

Fixed using box rail onto concrete balcony/terrace.
J-ClipTM is fully compatible with the MyDek BoxRail System
For use on balconies, terraces with a concrete or similar solid base structure, walkways, boardwalks, residential, leisure and commercial areas.
TECH SPECS
| Board width x depth | 193 x 20mm |
| Board length | 2.44m max or made to order (subject to conditions) |
| Weight | 15kgs/board (29.7kgs/sqm) |
| Board | Calcium silicate and mineral fibre composite |
| Expansion allowance | <1mm per linear metre |
| Finish | Solid, through-colour, textured woodgrain finish |
| Natural Hickory | LP19.2440.HICK |
| Natural Aged Oak | LP19.2440.AOAK |
| Natural Hickory |
Natural Aged Oak |
| For use on balconies, walkways, roof terraces, leisure areas and patios |
All storage, logistics and installation must be conducted under an appropriate risk assessment and method statement.
- Always wear gloves when handling boards.
- Boards must be stored flat, supported along their entire length such as on a suitable pallet.
- Store in a dry, ventilated area
- Do not store boards in damp or exterior conditions, this can cause mould build-up between the boards.
- Do not overload pallets, failure of a pallet can cause the stack to topple. Instead, stack up to 2 metres high in total and within the capacity of the pallet.
- Do not drag boards off the stack, instead, avoid scratches by lifting boards using a suitable technique, and where possible using suitable lifting aids.
- Use lifting aids and Personal Protective Equipment as set out in the risk assessment and method statement.
| Flexural Strength | 19MPa |
| SUPPORT CENTRES (MM) | STANDARD | LOAD TYPE | LOAD |
|
450mm |
EN 1991-1-1 |
Point |
>2kN |
|
450mm |
EN 1991-1-1 |
Distributed |
>2.5kN/m2 |
|
380mm |
EN 1991-1-1 |
Point |
>3kN |
|
380mm |
EN 1991-1-1 |
Distributed |
>4kN/m2 |
|
300mm |
EN 1991-1-1 |
Point |
>4kN |
|
300mm |
EN 1991-1-1 |
Distributed |
>5kN/m2 |
| QUALITY | STANDARD | VALUE | LIMIT |
|
Reaction to Fire |
EN 13501-1 |
A1 |
A2 – s1, d0 |
|
Deflection – 2Kn at 450mm span |
EN 310 |
<2mm |
<5mm |
|
Slip resistance – DRY (Slider 4S – 96) |
BS7976 – 2 |
60 PTV |
>36 PTV |
|
Slip resistance – WET (Slider 4S – 96) |
BS7976 – 2 |
43 PTV |
>36 PTV |
|
Slip resistance – DRY (Slider 55) |
BS7976 – 2 |
89 PTV |
>36 PTV |
|
Slip resistance – WET (Slider 55) |
BS7976 – 2 |
37 PTV |
>36 PTV |
|
Load testing is to EN310 with 1.6 safety factor |
|
|
| Natural Aged Oak | Max 37 |
| Natural Hickory | Max 9 |
