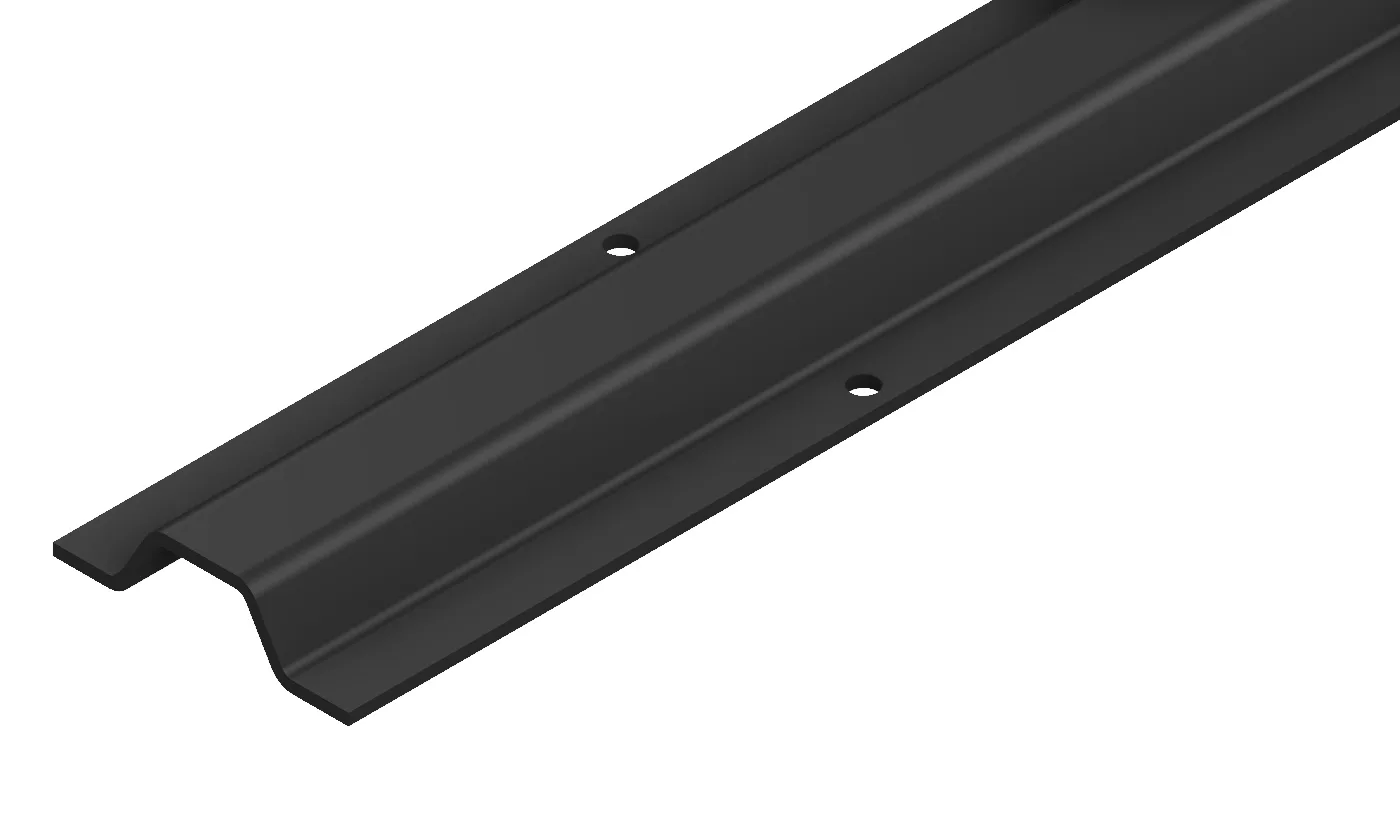

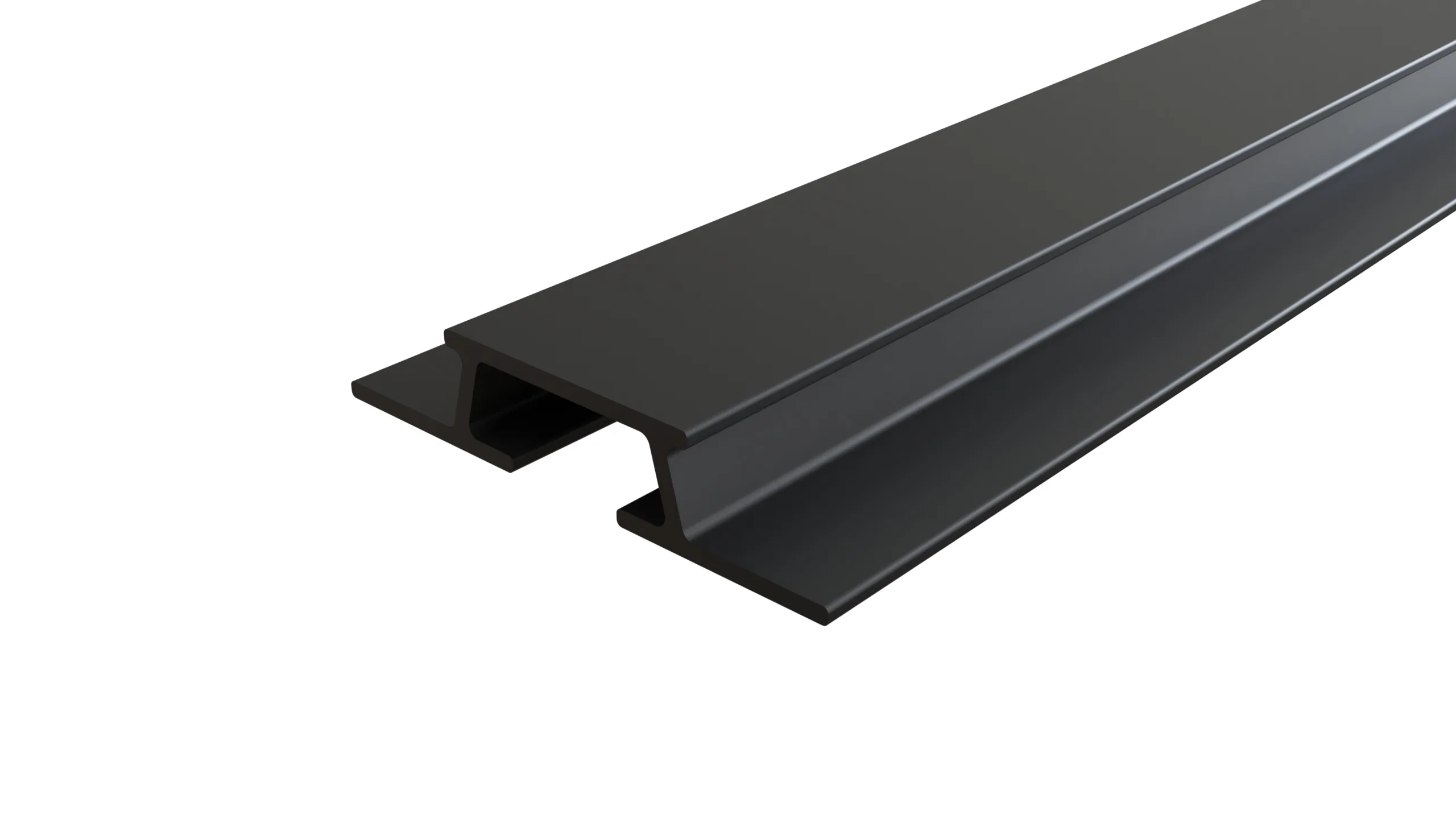

SpeedRail
10mm or 15mm high top hat rail in powder-coated aluminium. Designed to be fixed directly to steel beam flanges of up to 12mm thick using CS25 mainfix fasteners. Used with screws and clips
This product must be fully supported underneath, it is not designed to bridge gaps in steelwork.
KEY FEATURES
- Super-Fast Installation
- Lightweight
- Non-Combustible
Related Project
MyDek aimed to support this project with a forward-looking, practical solution, which led to the creation of SpeedRail
INSTALLATION
- Clear steelwork of any obstructions on the surface, and lay SpeedRails onto
the top flanges. - Using a string-line or a decking board, ensure the SpeedRails are aligned. Clamp them in position, butting SpeedRails tightly together to ensure accurate deck board spacing
- SpeedRails may be cut to length and SpeedRail end clips rivetted to drilled positions to hold boards in position. End clips are provided in secret fix half-height format to engage with the edge groove of boards or full height format where boards need to be cut and do not have an edge groove.
- Using bi-metallic Tek screws provided, fix the SpeedRails in position, using a minimum of 4no screws per rail, ideally in a zig-zag fashion.

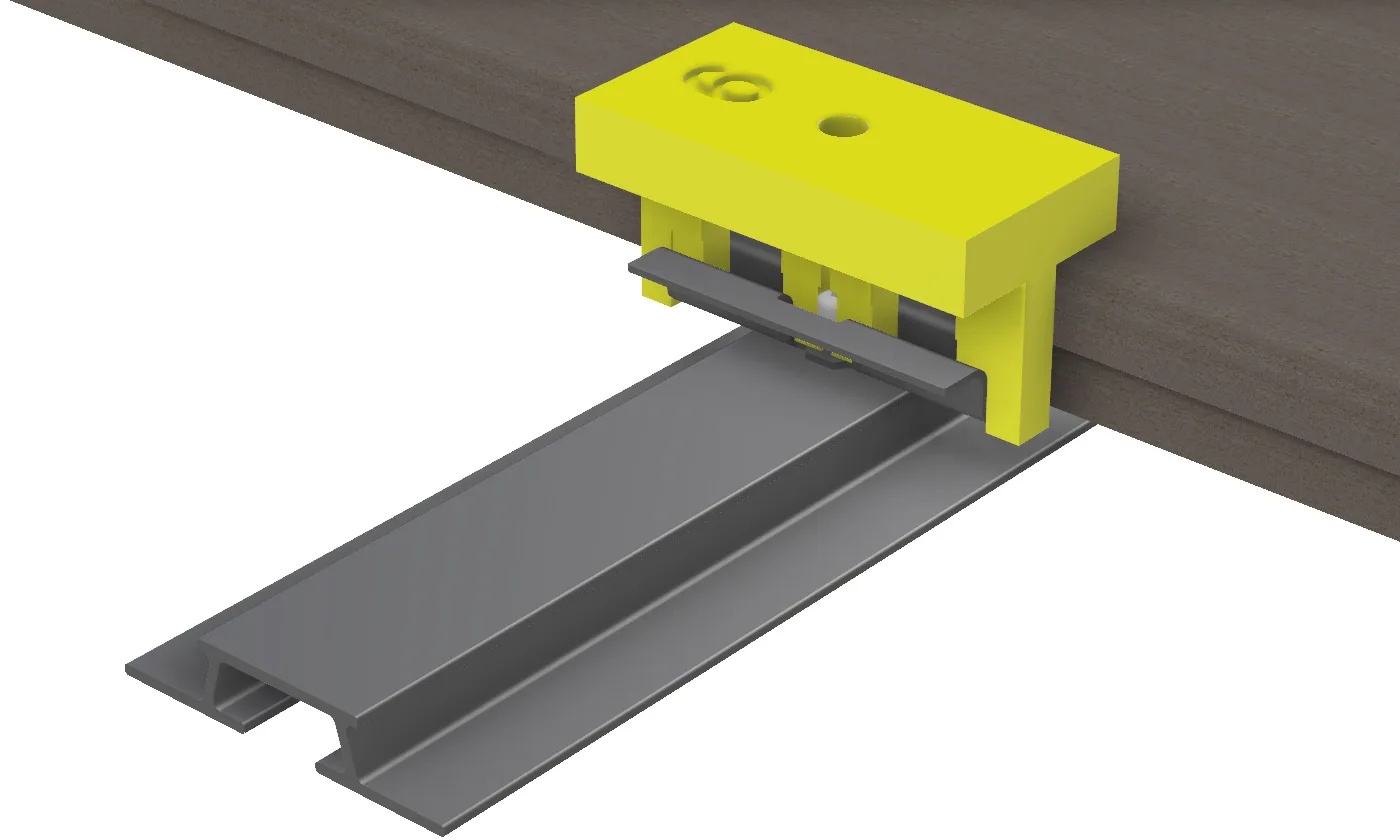

- Fix boards using edge clips as normal, using provided self-tapper screws in lieu of Tek screws normally provided with clips
TECH SPECS
| Height | 10mm or 15mm |
| Overall width | 50mm (SR10) 63mm (SR15) |
| Supplied length | 2500mm |
| Grade | Aluminium 6063 T6 |
| Thickness | 1.5mm |
| Finish | Powdercoated black RAL 9005 |
| Item Code |
SR15.2500.9005 (15mm height, 2.5m length) |
| Joist securing holes | 5.5mm (SR15) |
| For use on Inset balconies, roof terraces and podium decks |
CS25 stainless steel (A4) low profile mainfix fastener with washer
For steel flanges up to 12mm
SC01 Secret fix end clips
For grooved board edges
SC02 Full height end clips
For cut board edges
RV01 Rivets
To fix end clips to the SpeedRail
