Aspira 20mm aluminium decking boards
Introducing Aspira, the latest innovation in aluminium deck boards from MyDek. Crafted for versatility, this dual-sided, wide-format board is designed for easy installation into steel or aluminium subframes.

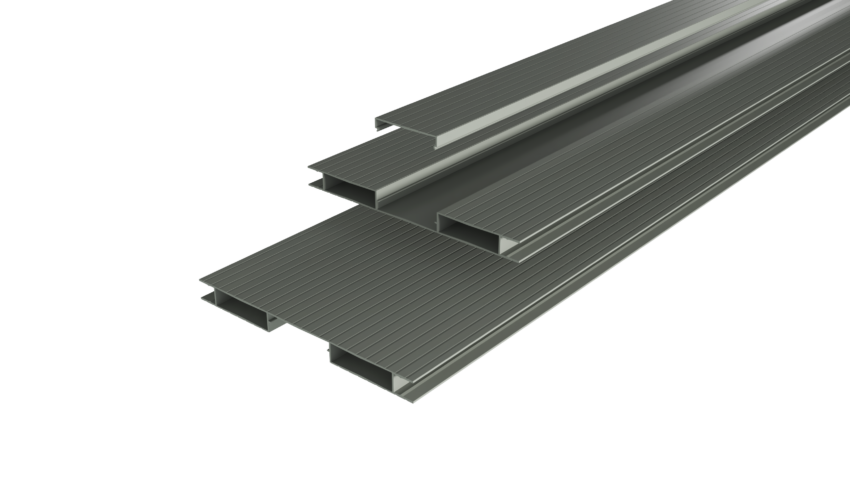

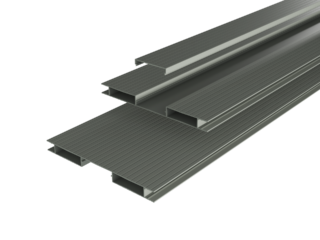

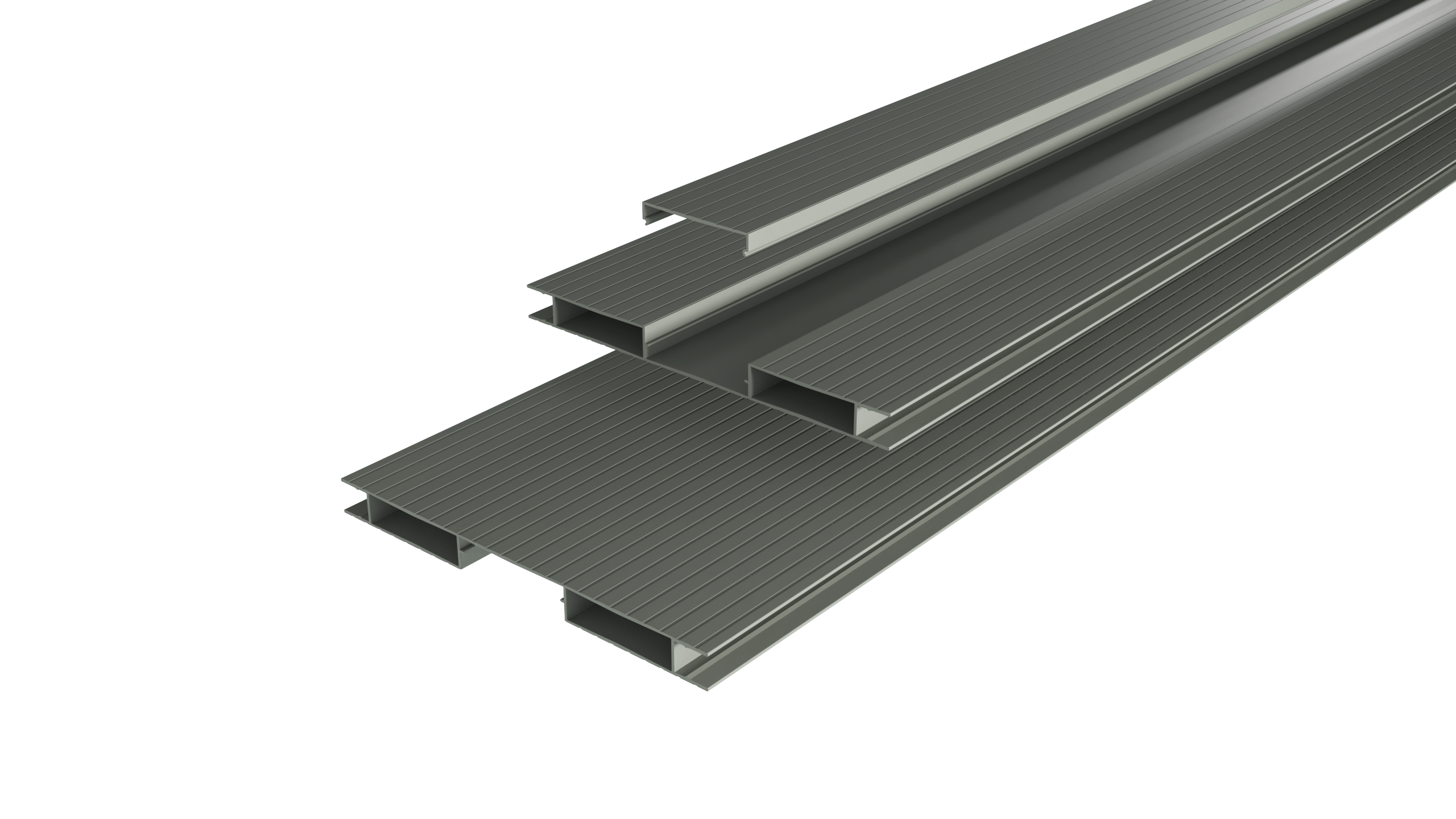

Choose from 2 installation options to best suit your application:

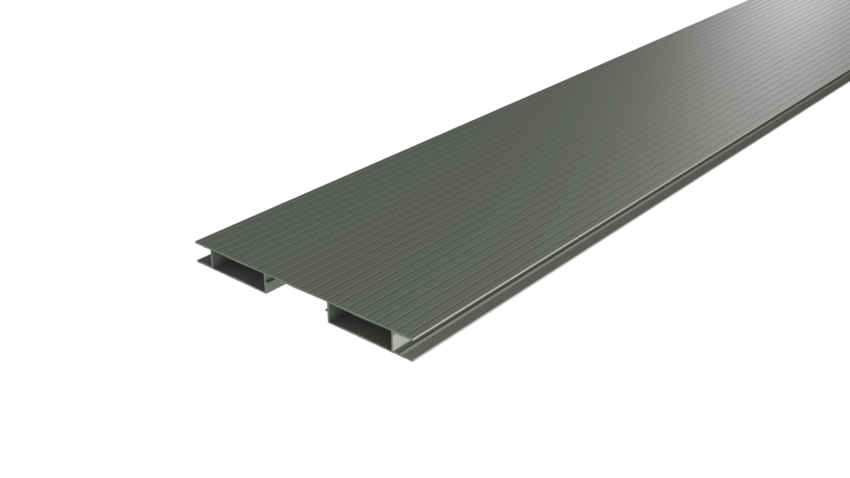

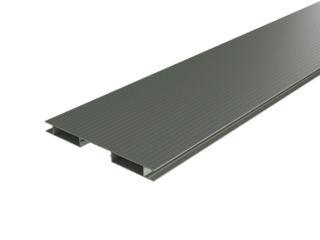

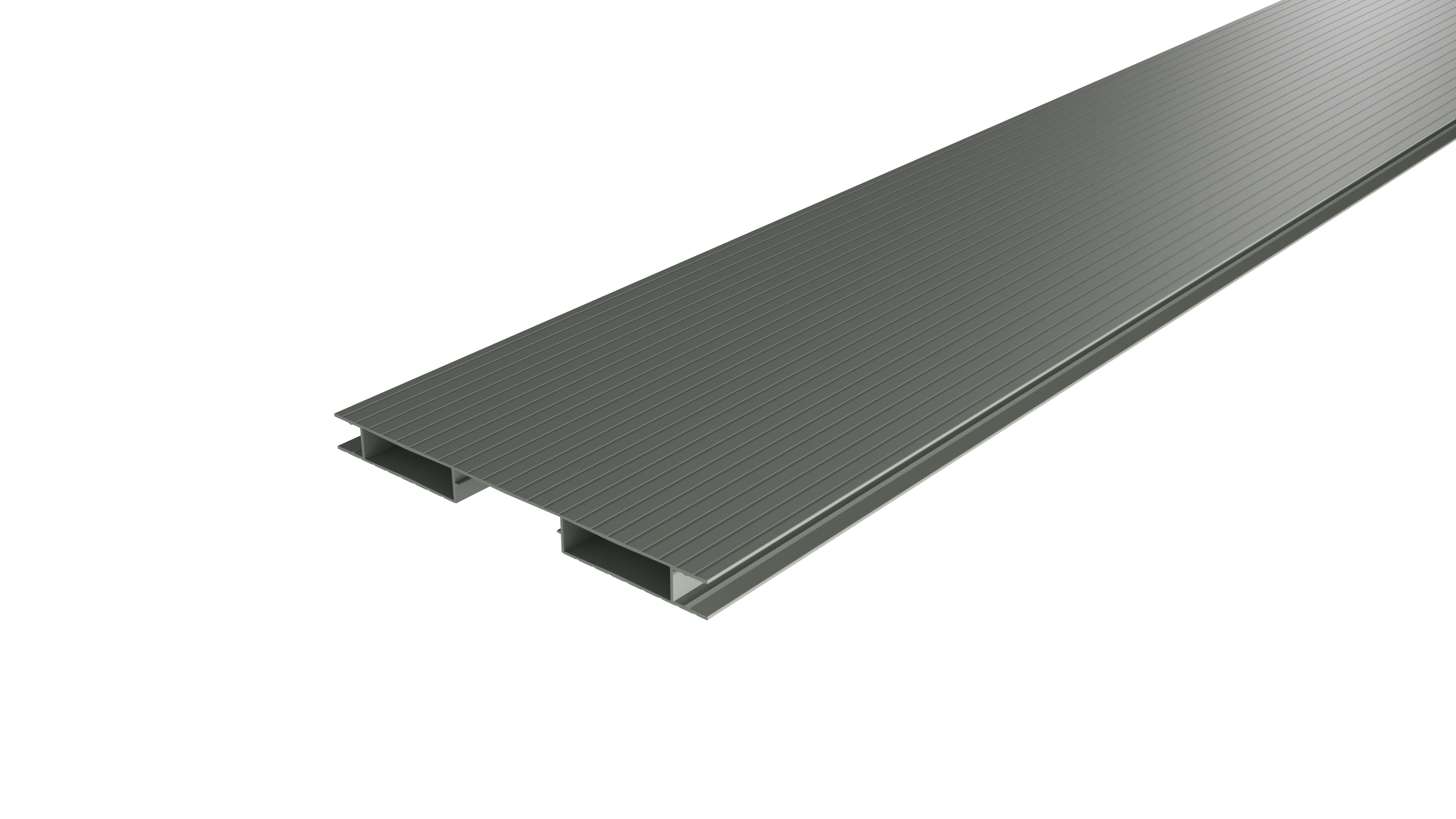

- Aspira (board only): ideal for fixing onto steel

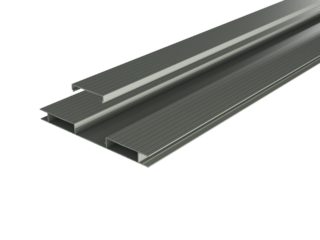

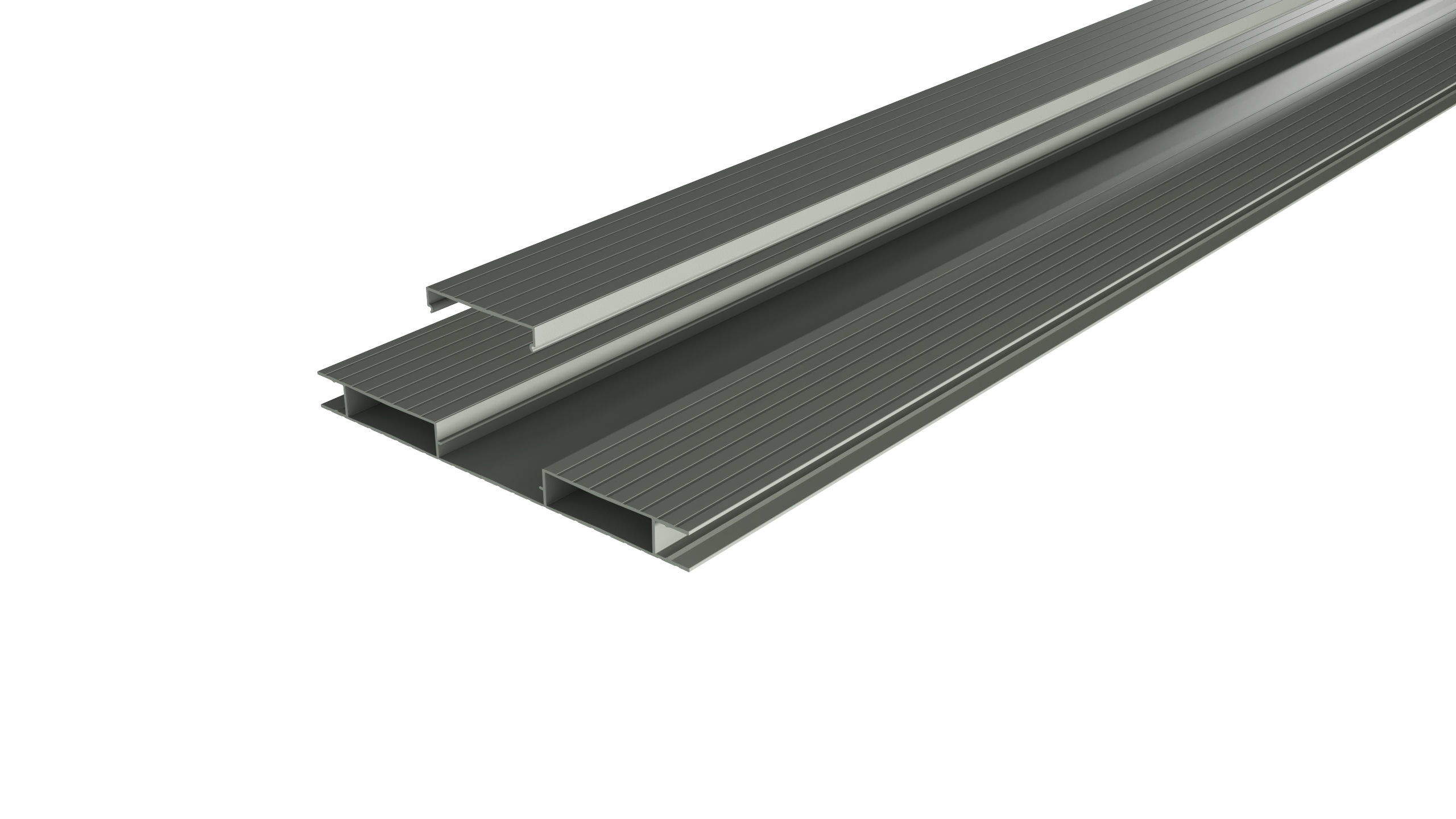

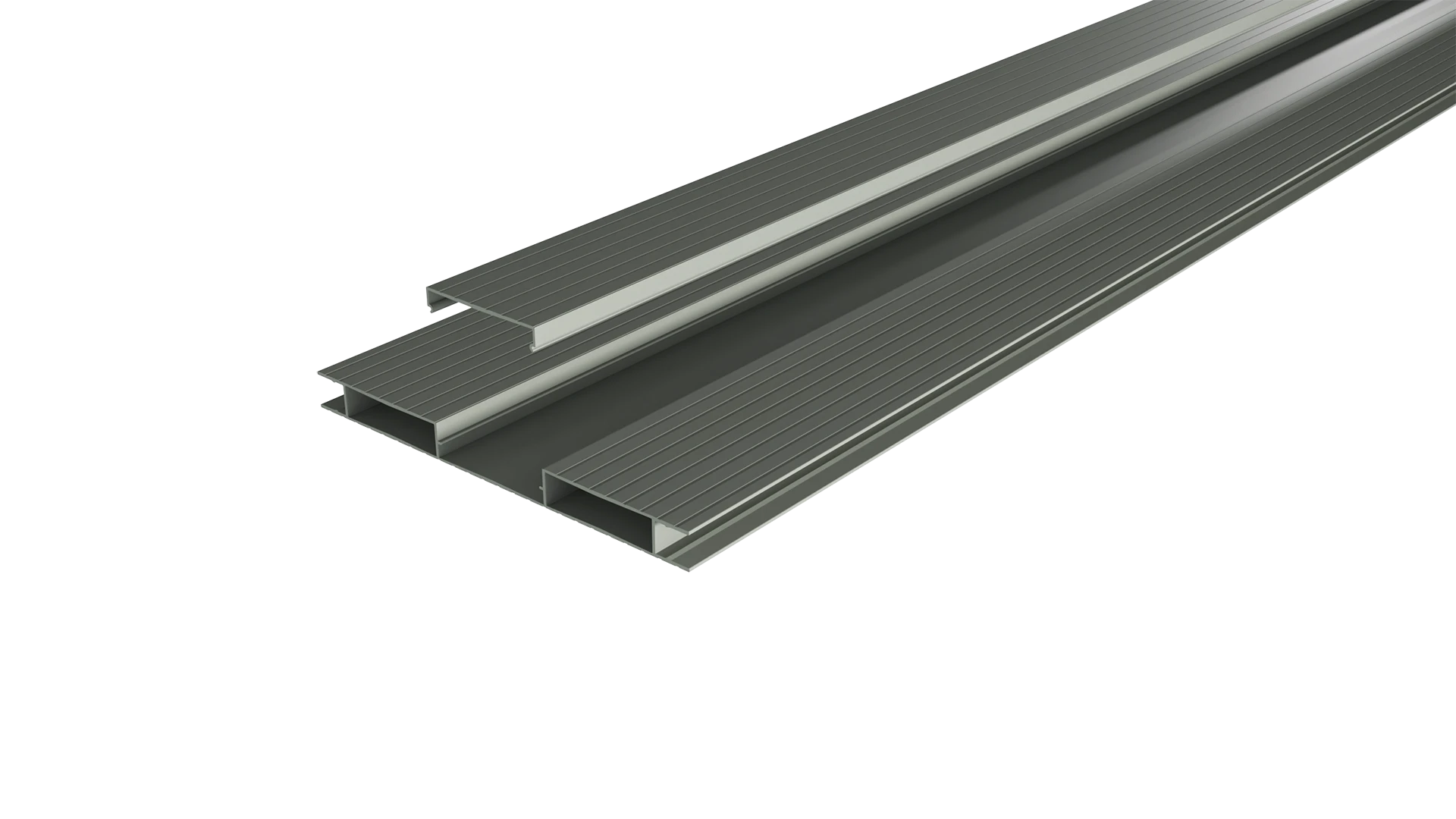

- Aspira Plus (board plus insert): ideal for fixing onto subframe
With its generous width of 244mm, Aspira streamlines installation by delivering 70% faster coverage than standard boards whilst requiring 30% less fixings. Its extended span capability of up to 1m at 2.5kN residential loadings, not only reduces the substructure required by up to 40% but also further reduces the overall number of fixings.
Engineered to endure the elements, Aspira boasts a powder-coated finish adhering to Qualicoat Class 2 standards, ensuring exceptional durability, even in coastal environments.
Available in six colours, Aspira comes in standard 4.2m lengths or is available cut-to-length to minimise waste. This versatile board lends itself to a variety of applications while maintaining a consistently sleek finish, no matter the project.
You can now purchase our standard Delta30 Quartz Grey and Anthracite Grey 4.2m boards online
KEY FEATURES
- Fully certified
- A2 – s1, d0 non-combustible fire rating
- Lightweight, reversible board
- Suitable for fixing into steel or aluminium subframe
- Concealed fixings
- Wider board format reduces number of fixings required and speeds up installation
- Slip resistant
- 30 year warranty
- 60 year design life
COLOURS
Aspira boards are available in a range of modern colours. All aluminium decking samples come with a free colour swatch card.
INSTALLATION
This wide-span reversible board is compatible with the full range of support systems from MyDek, allowing for fast and accurate installation.
Choose from 2 installation options to best suit your application:
Aspira (board only): ideal for fixing onto steel
Aspira Plus (board plus insert): ideal for fixing onto subframe
SYSTEMS FOR ALL APPLICATIONS
Fixed using box rail onto concrete balcony/terrace.
For smaller inset balconies and terraces where a low-cost, simple and flexible subframe system is required. The aluminium system comes with a combination of different joist and support cleat sizes allowing a versatile range of construction heights.
Fixed direct to metal balcony frame.
Use the Aspira Plus deck board profile for fast and easy direct fix to steel or aluminium framing.
Please note: This fixing option is only applicable to the Aspira Plus, Delta20 and Delta30 Aluminium decking boards.
J-ClipTM is fully compatible with the MyDek BoxRail System
For use on balconies, terraces with a concrete or similar solid base structure, walkways, boardwalks, residential, leisure and commercial areas.
TECH SPECS

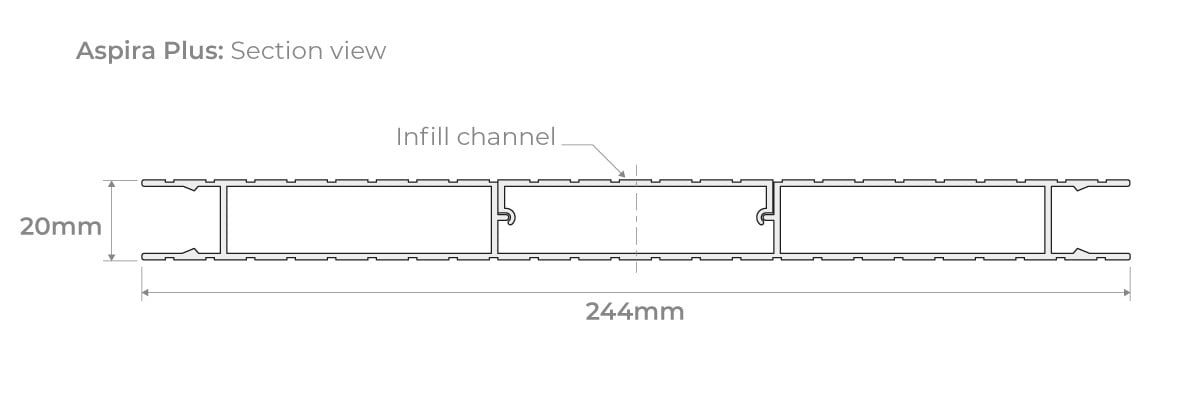

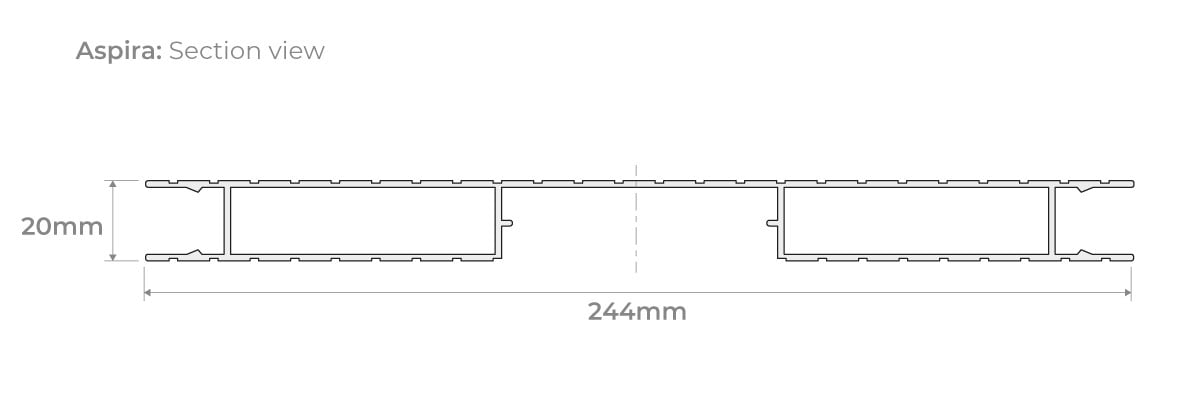

| Board width x depth | 244 x 20mm (250mm module) |
| Board length | 4.2m or cut-to-length (subject to conditions) |
| Weight |
9.94 kg/sqm (Aspira) 11.52 kg/sqm (Aspira Plus) |
| Board | Aluminium grade 6063-T6 |
| Expansion allowance | 1mm per linear metre |
| Finish | Powdercoated to Qualicoat Class 2 standard |
| Aspira (board) | AB01 |
| Aspira Plus (board + insert) | AB01 + AI01 |
| RAL | 7016, 7037, 7039, 7040, 8014, 8019 |
| For use on | balconies, walkways, roof terraces, leisure areas and patios |
Profiles are packaged with protection against scratching and contamination, and supplied with appropriate support (e.g. stillage or pallet). Ensure that this level of protection is maintained until installation, including storage in dry conditions and support along the length of the profiles. Improper storage may lead to damage that falls outside the warranty.
| QUALITY | STANDARD | VALUE | LIMIT |
| Deflection – 80KG at 960mm span | EN310 | 1.59mm | <5.0mm |
| Deflection – 2KN at 960mm span | BS1090 | 4.31mm | <5mm |
| Slip resistance - Wet | BS7976 -2 Pendulum Slip Test | 38 PTV | >36 |
| Slip resistance - Dry | 68 PTV | >36 | |
| Coefficient of thermal expansion | N/A | 0.024mm/m/°C | - |
| Coating Durability | Qualicoat Class 2 powder | ||
|
Accelerated wear test (biomechanical - see appendix 1.1) |
TM391:2016 |
‘Very Slight’ at 50K ‘Slight’ at 100K |
- |
| Furniture leg test (scratching) | EN424:2001 | No damage Slight transfer | |
| Coating Adhesion | ISO-0 ASTM-5B | No separation | - |
| UV Stability | ISO2810 | Class 2 | 3-year Florida |

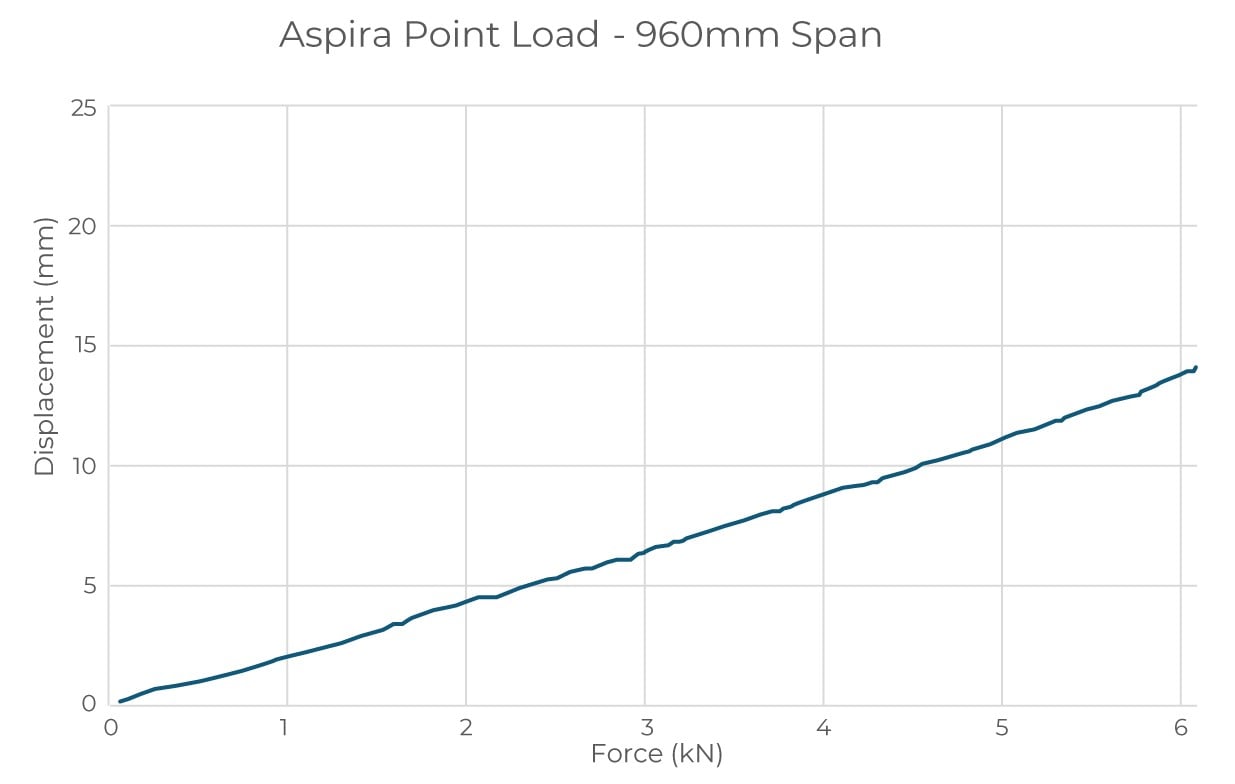

Deflection under load
