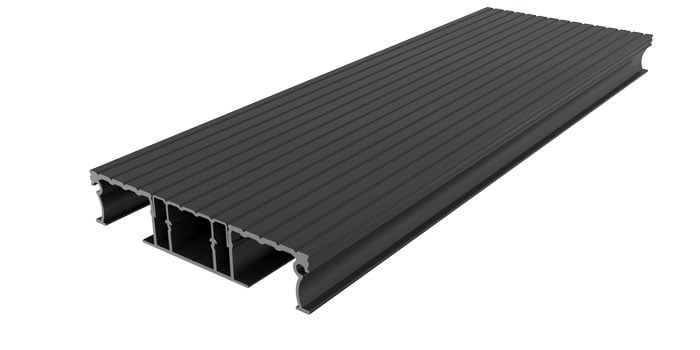

Delta30

Aluminum Balcony Decking

30mm aluminium decking board

The Delta range is the ultimate high-performance MyDek® board that simply fixes directly to the balcony frame! Delta30 is the 30mm deep board option and will comfortably span up to 1000mm with minimal deflection which means that less substructure supports are required thus reducing material costs and installation times. The simple clip-in cover conceals all fixings, and enables quick and easy installation to a variety of substrates using standard self-drill fixings. Available in the popular range of 6 standard colours and coated using Qualicoat Class 2 powder, Delta30 is your premier choice for versatility in non-combustible decking.



KEY FEATURES

  • Fully certified
  • Non-combustible
  • Lightweight
  • Concealed fixings
  • Slip resistant
  • 30 year warranty
  • 60 year design life

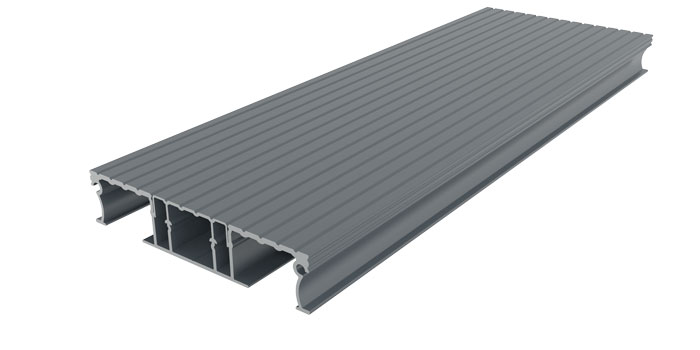

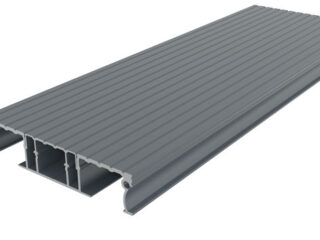

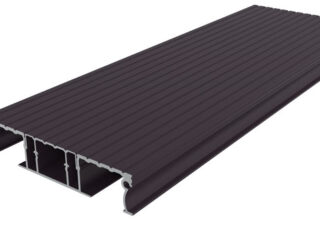

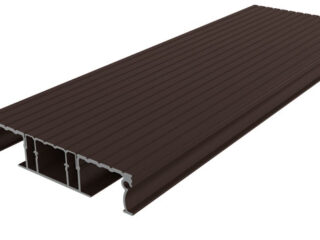

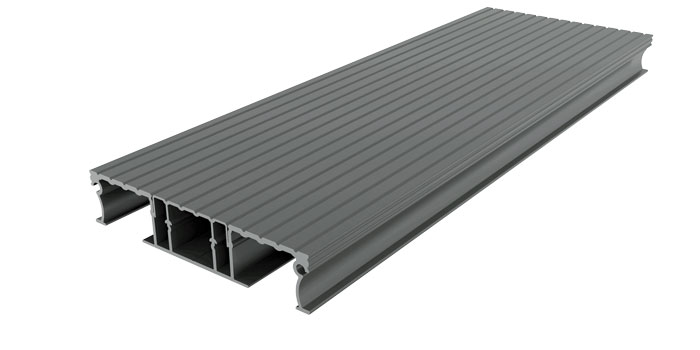

COLOURS

Delta30 boards are available in a range of modern colours etc. They can also be finished with our special Naturo woodgrain pattern.

CALL US NOW ON +44 (0) 330 94 94 11
TO ORDER YOUR FREE SAMPLE

INSTALLATION

Available in a range of standard colours, Delta30 allows direct fixing to steel balcony frames without clips. The simple clip-in cover conceals all fixings, and enables quick and easy fixing to a variety of substrates. Coated to Qualicoat Class 2 standards, Delta30 is your premier choice for versatility in non-combustible decking.

Able to be coupled with the MyDek® Terrace System for inset concrete balconies
and roof terraces, Delta30 provides the quick and simple solution for non-combustible decking.

With its low slip risk finish and 60 year design life, rest assured that it will provide generations of reliable performance. Of course, it’s rated to A2-s1,d0 making it fully compliant with the amended Part B of the Building Regulations, and it’s been subjected to many other tests to guarantee its performance for the long term. Deflection testing, wear testing and adhesion testing are among countless rigorous performance criteria that make Delta30 the decking board choice for discerning clients worldwide.

Download our installation guide

SYSTEMS FOR ALL APPLICATIONS

Fixed direct to metal balcony frame.

Use the Delta deck board profile for fast and easy direct fix to steel or aluminium framing.



Please note: This fixing option is only applicable to the Delta20 and Delta30 Aluminium decking boards.

Fixed using box rail onto concrete balcony/terrace.

For smaller inset balconies and terraces where a low-cost, simple and flexible subframe system is required. The aluminium system comes with a combination of different joist and support cleat sizes allowing a versatile range of construction heights.

More Information

Fixed using SupportRail onto concrete balcony/terrace.

For larger terrace areas where hevier duty application may be required. The durable stainless steel pedestals come in a range of sizes up to over 400mm.





More Information

TECH SPECS

DIMENSIONS

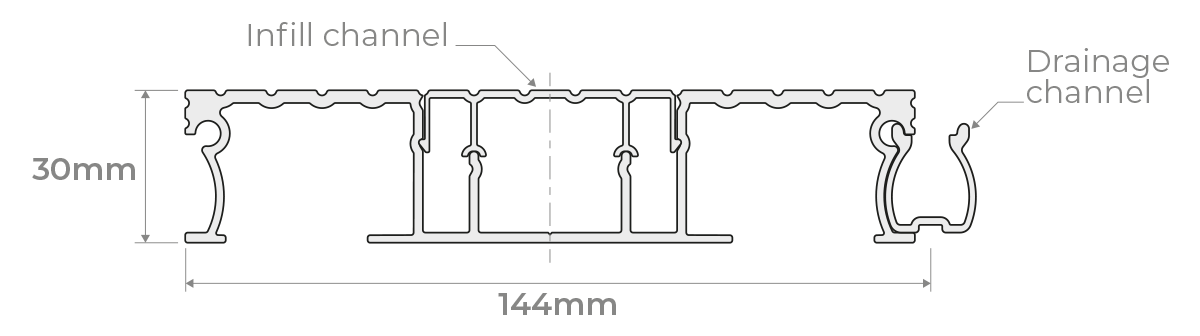

Board width x depth 144 x 30mm (150mm module)
Board length 4.2m or cut-to-length (subject to conditions)
Weight 13.86 kg/sqm

MATERIAL

Board Aluminium grade 6063-T6
Expansion allowance 1mm per linear metre
Finish Polyester Powder Coating – 80micron slip-resistant

PRODUCT CODES

Decking board BD11

COLOUR RANGE

RAL 7016, 7037, 7039, 7040, 8014, 8019

APPLICATIONS

For use on balconies, walkways, roof terraces, leisure areas and patios

STORAGE AND HANDLING

Profiles are packaged with protection against scratching and contamination, and supplied with appropriate support (e.g. stillage or pallet). Ensure that this level of protection is maintained until installation, including storage in dry conditions and support along the length of the profiles. Improper storage may lead to damage that falls outside the warranty.

DOWNLOAD DATASHEET

PERFORMANCE STANDARDS

QUALITY STANDARD VALUE LIMIT
Deflection – 80KG at 1000mm span EN310 5.00mm <5.0mm
Deflection – 2KN at 1350mm span BS1090 7.34mm <7.5mm
Slip resistance - Wet BS7976 -2 Pendulum Slip Test 39.5 PTV >36
Slip resistance - Dry   59 PTV >36
Coefficient of thermal expansion N/A 0.024mm/m/°C -
Coating Durability Qualicoat Class 2 powder

Accelerated wear test

(biomechanical - see appendix 1.1)

TM391:2016

‘Very Slight’ at 50K

‘Slight’ at 100K

-
Furniture leg test (scratching) EN424:2001 No damage Slight transfer
Coating Adhesion ISO-0 ASTM-5B No separation -
UV Stability ISO2810 Class 2 3-year Florida

STRENGTH

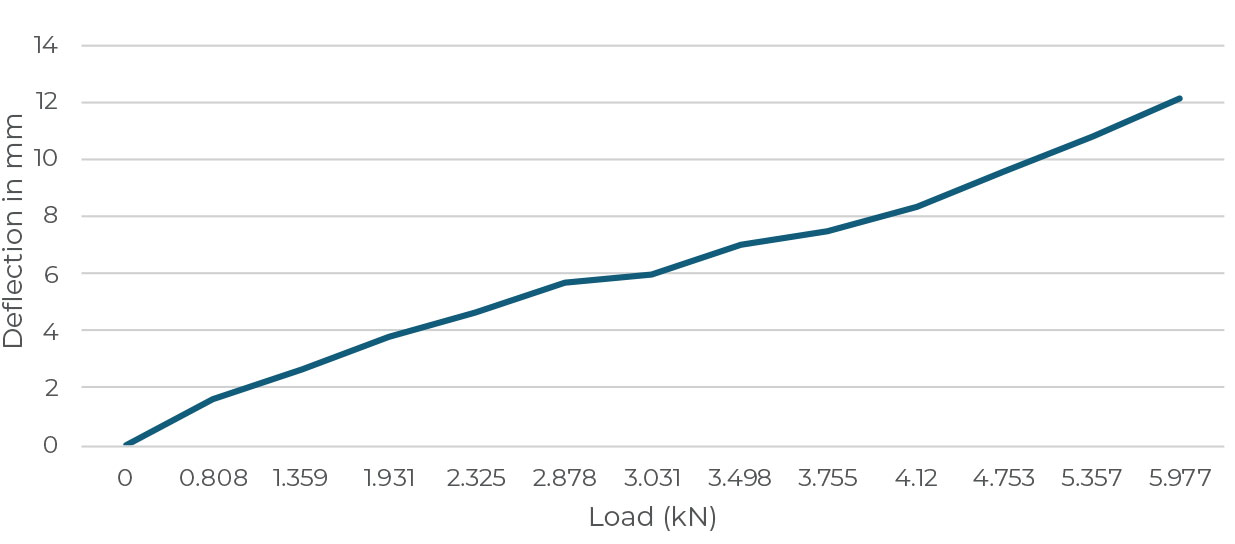

Deflection under load

NBS SPECIFICATION

REQUEST A SAMPLE

Related products and services

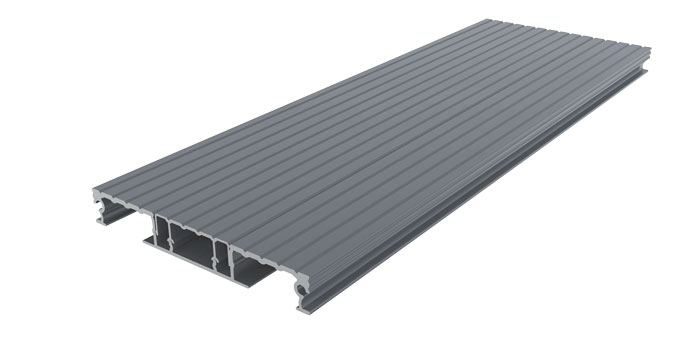

Delta20 is the low-profile board option for direct fixing to steel balcony frames without clips. The simple clip-in cover conceals all fixings, and enables quick and easy installation to a variety of substrates using standard self-drill fixings.
