SupportRail TerraceSupport System

Virtually tool-free installation means that fitting the MyDek® System onto your terrace or inset balcony is rapid and accurate, and with the super-low SupportRail™ profile you can achieve finished floor levels from 60-300mm above the structural level.  The MyDek®  SupportRail™ system has been specifically designed to meet the latest regulations and completely provide class-leading adjustability and ease of use.

Quick, simple and accurate.

KEY FEATURES

  • Fully non-combustible
  • Achieves Euroclass A2-s1,d0 fire rating
  • Specifically designed for inset balconies and podiums
  • Suits deck levels with buildup as low as 60mm
  • Versatile and fast to fit saving you time and money
  • Virtually tool-free
  • SupportRail accurately spaces boards
  • Coated using Qualicoat Class 2 powder
  • Available in six standard colours
  • INSTALLATION

    Rail clips to adjustable pedestal. Rubber protection mats should be inserted to protect waterproofing membranes if necessary.

    Applications

    For use on balconies, walkways, roof terraces, leisure areas and patios.

    Download our installation guide

    TECH SPECS

    MATERIAL

    Pedestal SR16
    Support Rail Aluminium grade 6063-T6
    Expansion allowance

    1mm per linear metre

    Finish

    Mill

    COLOUR OPTIONS

    Product available in Black or supplied uncoated (mill finish) on request.

    APPLICATIONS

    For use on balconies, walkways, roof terraces, leisure areas and patios.

    STORAGE AND HANDLING

    Profiles are packaged with protection against scratching and contamination, and supplied with appropriate support (e.g. stillage or pallet). Ensure that this level of protection is maintained until installation, including storage in dry conditions and support along the length of the profiles. Improper storage may lead to damage that falls outside the warranty.
    DOWNLOAD DATASHEET

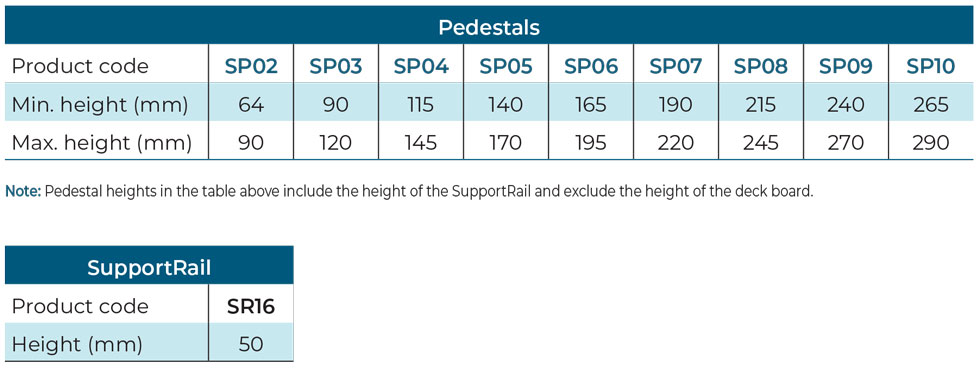

    DIMENSIONS & PRODUCT CODES

    PERFORMANCE STANDARDS

    QUALITY STANDARD VALUE LIMIT

    Coefficient of thermal expansion

    N/A

    0.024mm/m/°C

    -

    Fire test

    EN 13501 – 1 A1:2013

    A2-s1,d0

    A2-s1,d0

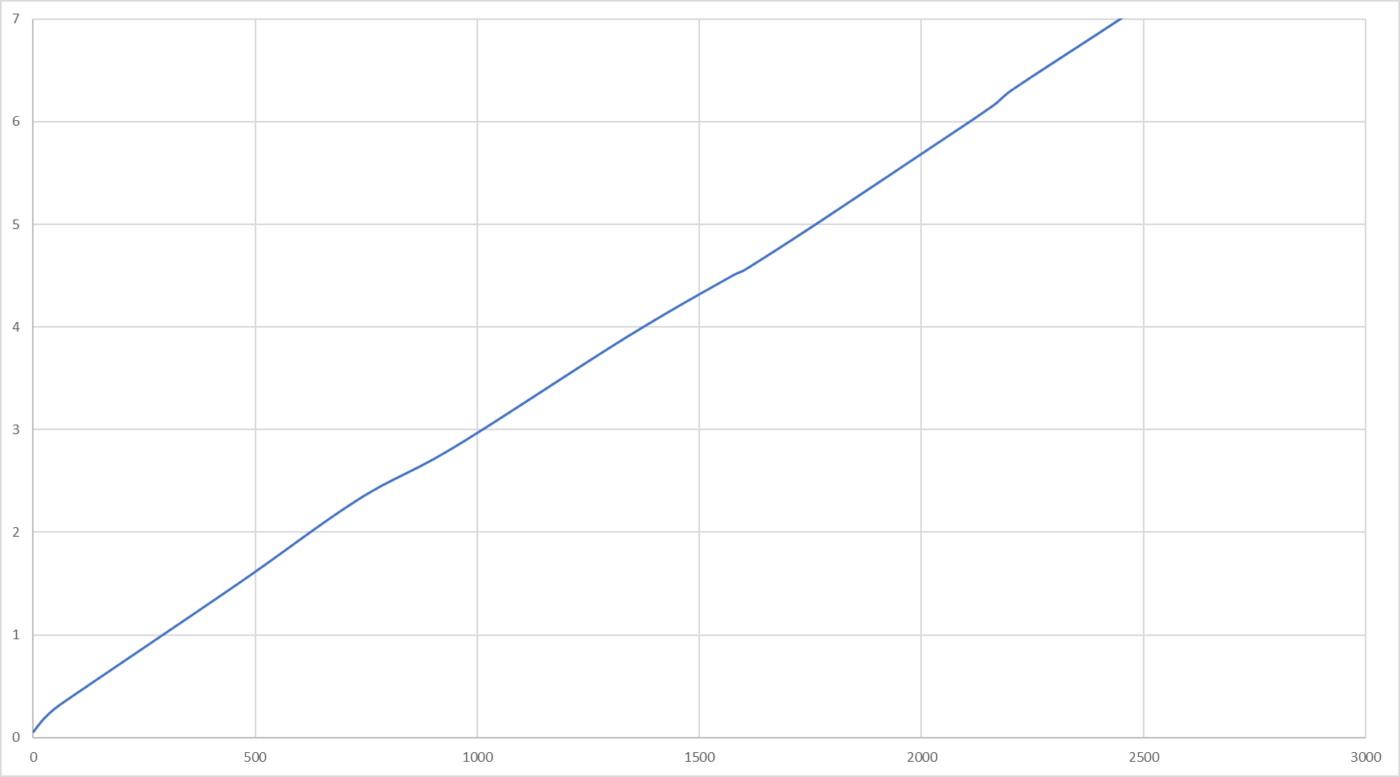

    STRENGTH

    NBS SPECIFICATION
